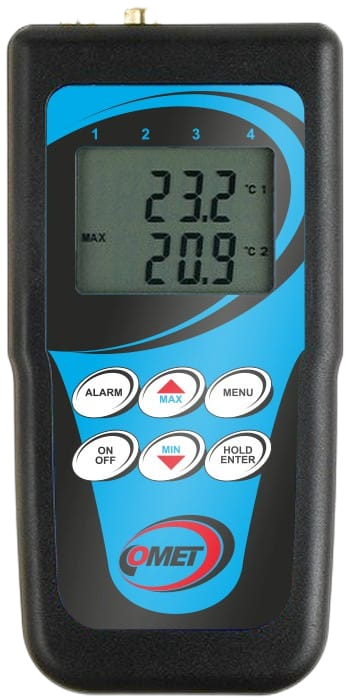

Dual Channel Thermometer Ni1000/Pt1000

D0221

The thermometer is designed to measure the temperature directly and record the data into the internal non-volatile memory.



Free PC program transfers recorded data to a computer for subsequent evaluation. Backlit LCD display.



The instrument is connected to a PC via the supplied USB cable and is only used to transfer data from the memory. Measurement and recording cannot be performed while connected to a computer.

Warranty: 3 years

Measurement parameters
Temperature


Temperature Sensor - External Probe PT1000
Measurement range: -200 to +500 °C
Measurement accuracy: ±0.3 °C od -50 to +100 °C;
±0.3 % for readings from +100 to +500 °C;
±0.6% of reading from -200 to -50 °C
Resolution: 0.1 °C


General Technical Data
Operating temperature: -30 to +65 °C
Channels: 2 external temperature probes
Audio Signal + Backlight LCD: Yes
Total storage capacity: 16,000 values in non-cyclic recording mode
Recording interval: adjustable from 10 seconds to 24 hours
Measurement interval and display reading refresh: 0.7 to 5 seconds
Data logging modes: Non-cyclic - stops logging when the memory is full; cyclic - the earliest data is overwritten with new data after the memory is full
Real-time clock: year, leap year, month, day, hour, minute, second
Battery: 9 V or 12 V power adapter with 9 V Ni-MH battery
Battery life: approx. 6 months
Protection level: IP20
Dimensions: 141 x 71 x 27 mm
Weight (including battery): Approx. 150 g
Warranty: 3 years

  • D0221
  • Operator's Manual
  • Traceable calibration certificate
  • 9 V Battery
  • Mini USB Cable
  • Plastic Transportation Box
  • Easy to install self-adhesive double locks
  • Free analysis software COMET Vision

Delivery without external probe
