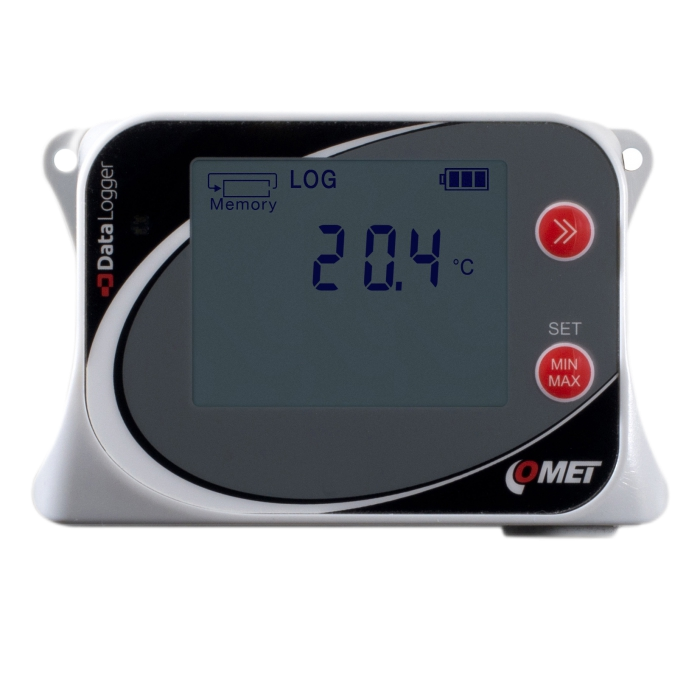

U0110 內置傳感器的溫度數據記錄儀

U0110

數據記錄儀專為溫度記錄而設計。



Recordings are made in a non-volatile electronic memory. Data can be transferred to a computer via USB-C.



If the set limit is exceeded, an alarm will be generated through the LED, LCD and built-in buzzer.



The device includes a traceable calibration certificate and declares that the calibrator's metrological traceability is based on the EN ISO/IEC 17025 standard.

Warranty: 3 years

Temperature Sensor
測量範圍:-30 至 +70 °C
Measurement accuracy: ±0.4°C
Resolution: 0.1°C
溫度測量的響應時間t90 (溫度步長20°C,氣流約1m/s):15分鐘

General Technical Data
工作溫度:-30 至 +70 °C
通道:內置溫度探頭
Total storage capacity: 500,000 values in non-cyclic recording mode; 350,000 values in cyclic recording mode
Recording interval: adjustable from 1 second to 24 hours
Display and alarm update: 1 second, 10 seconds, 1 minute adjustable
Data logging modes: Non-cyclic - stops logging when the memory is full; cyclic - the earliest data is overwritten with new data after the memory is full
Real Time Clock: Year, Year, Month, Day, Hour, Minute, Seconds
Battery: 3.6 V Lithium Ion, AA type
Protection level: IP67
Dimensions: 61 x 93 x 32 mm
Weight (including battery): approx. 120 g
Warranty: 3 years
  • U0110
  • Operator's Manual
  • Traceable calibration certificate
  • 1 x 3.6V lithium battery
  • Free analysis software COMET Vision
*Delivery without external probe, without USB communication cable
