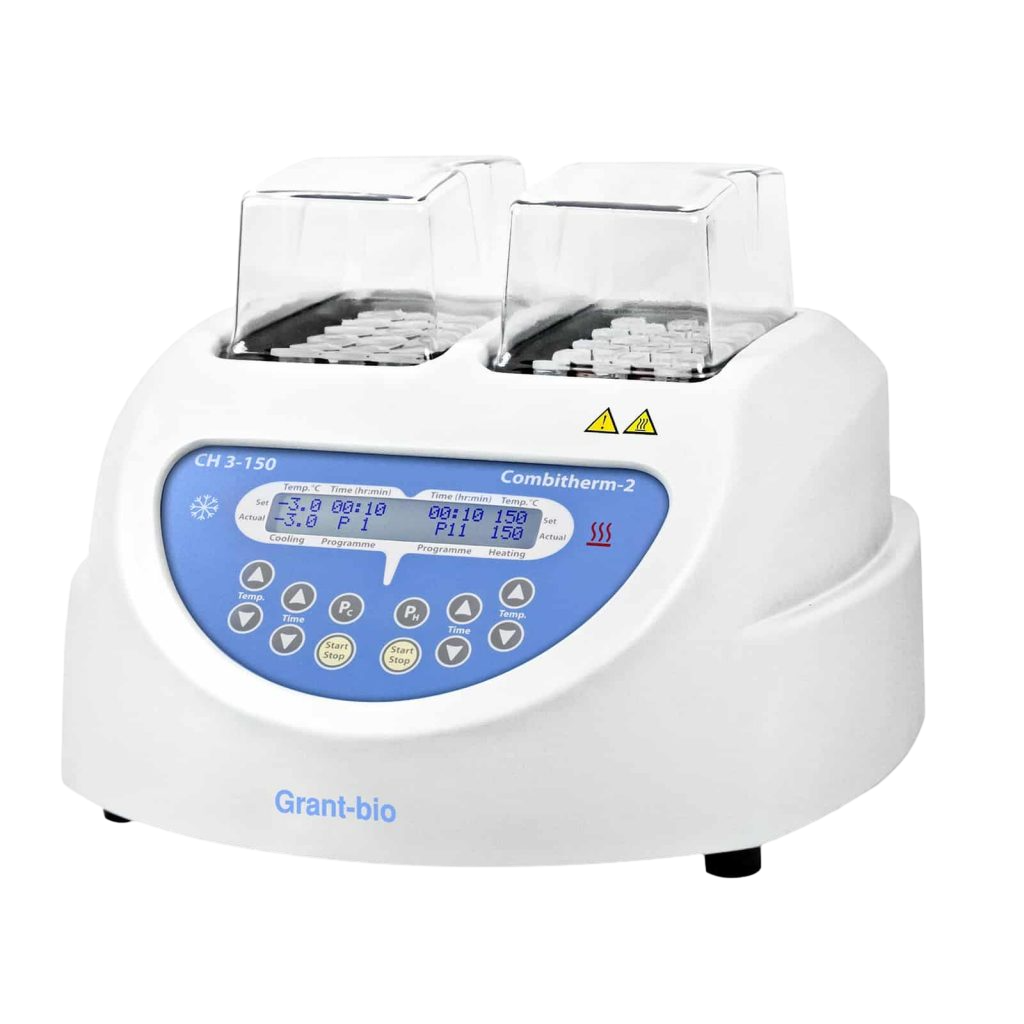

CH3-150 Combination Thermostat Dryer
The CH3-150 is a durable, modular thermostatic dry bath that combines separate heating and cooling systems in one unit for added flexibility of use. The dryer is available with a choice of seven interchangeable heating modules and can be customized to meet a wide range of tube sizes.The
Application Areas:
- Life Sciences - Preservation of Restriction Enzymes, Incision Panning, Splicing Reactions, Restriction Enzyme Digestion, Liquefaction of Proteins Prior to PAGE, Thermal Incubation of Microcentrifuge Tubes Prior to Hybridization, Enzyme Reactions and Deactivation
- Industrial - digestion of environmental samples for COD analysis, soil digestion, temperature maintenance
- Life Sciences - Cell Digestion, DNA/RNA Extraction, Post PCT Sequencing Cleanup - Drying Steps, In Vitro Boiling of DNA RNA/Protein Samples, Incubation of In Vitro Reactions/Digestion, Extraction of DNA for Real Time PCR Analysis, Denaturation of Nucleic Acid and Protein Samples
- Other applications that require incubation of the sample at a set temperature or heating to bring the solution to a boil in the tube.
The user can control the temperature and time through the program:
16 segments (heating system) and 16 segments (cooling system)
Stability. Up to ±0.1ºC
Temperature calibration function.Precise temperature control
Timer with audible alarm:
1 minute to 99 hours 59 minutes
7 interchangeable modules, standard with extractor.
Can be customized to meet individual needs
2-line LCD display for clear indication
Set and actual values of temperature and time
Independent adjustment in one device
Heating and cooling modules
- Technical Parameters
Dimensions (H x D x W) | 220 x 285 x 295 mm |
Heating Block Temperature Range | +25 to +150°C |
Heating Block Temperature Control Range | Ambient temperature +5 to +150°C |
Heating Block Setting Resolution | 1°C |
Heating Block Stability | ±0.1°C |
Cooling Block Temperature Range | -3 to +20°C |
Cooling Block Temperature Control Range | Ambient temperature -23 to ambient temperature -5°C |
Cooling Block Setting Resolution | 0.1°C |
Cooling Block Stability | ±0.1°C |
Digital timer with audible alarm | 1 minute - 99 hours 59 minutes (in 1 minute increments) |
User adjustable programs (temperature and time) | 16 (heating) + 16 (cooling) |
showcase | Liquid Crystal Display |
Nominal Operating Voltage | 230V (50/60Hz) only |
weights | 5.6 kg |
