Capture Module Ethernet Combo

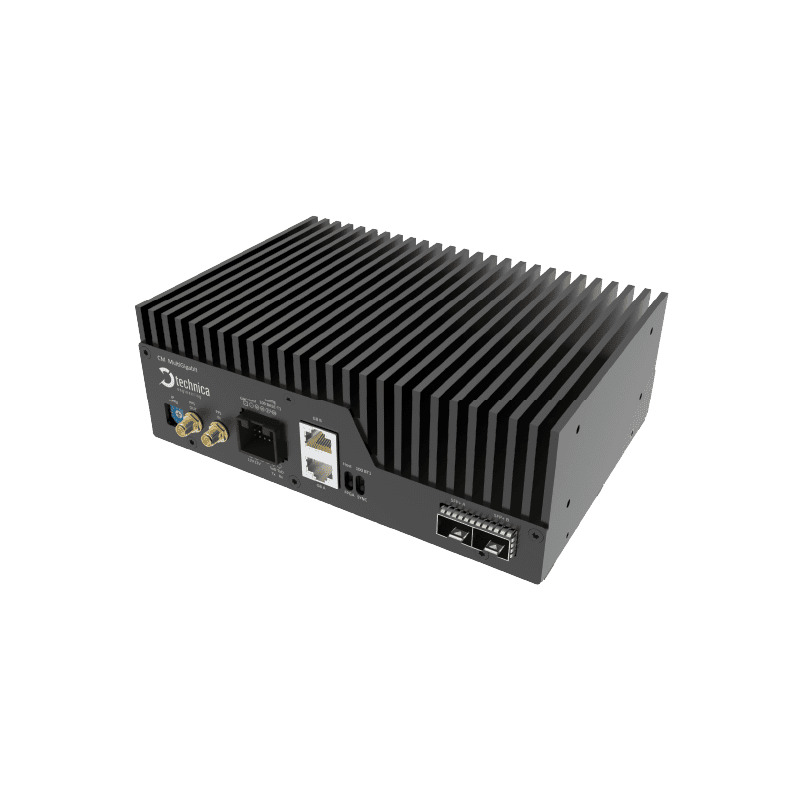

The Technica Car Ethernet Capture Module: Capture Module Multigigabit - is a recording device for Car Ethernet with speed levels up to 10Gbit/s (10GBASE-T1), realized through a new PHY technology.
Functional overview
Fast recording speed with three data rates to choose from
Advanced Timestamp Add
- The Capture Module Multigigabit is a recording device for in-vehicle Ethernet with speed classes up to 10Gbit/s (10GBASE-T1), which is realized by means of new PHY technology.
- The device can be set to record three different data rates:
- 5 Gbit/s (2.5 GBASE-T1)
- 5 Gbit/s (5 GBASE-T1)
- 10 Gbit/s (10 GBASE-T1)
- In order to be able to record data with minimal impact on the test system, the capture module was placed in the middle of the observed communication line.
- In this way, you can add the most advanced timestamp to the data sent over the wire.
2 ports + 2 H-MTD connectors
- Our capture module MultiGigabit can be used to record 2.5/5/10 GBASE-T1 data on one channel, so it has 2 ports (1x incoming traffic, 1x outgoing traffic).
- Our capture module has two H-MTD connectors for 2.5/5/10 GBASE-T1 incoming and outgoing traffic lines. To send captured traffic, it has two SFP+ slots for data uplink. Through these two SFP+ ports, recorded data can be transferred to a data logger or PC.
Can be configured via easy-to-use HTML
- CM MultiGigabit includes a power connector, two Gigabit standard Ethernet ports for configuration/time synchronization, and a rotary switch for configuring the device IP.
- When the Capture Module MultiGigabit is connected to a PC via the configuration port and LAN cable, you can configure the device through an easy-to-use HTML configuration site.
The CAPTURE MODULE MULTIGIGABIT appliance captures your 10G BIT/S or more data streams without disturbing the original network. Add the most advanced timestamps to data sent over the line.
Specification
Product Advantage
Product Use Cases
Specification
- 2 ports with 2.5/5/10GBASE-T1 PHY and H-MTD connector
- 1 × MQS connector with 1 × host port, for configuration only
- 2 RJ-45 1000BASE-T Ethernet ports for configuration and time synchronization
- Extended voltage range 9 to 24 VDC (nominal 12/24 VDC)
- Importing and exporting configurations
- Extended voltage range: Compatible with 12 to 24 volt automotive battery voltage systems
- Rotary switch for manual configuration of device IP address (Gbit, RJ-45)
- Can be reset to default setting by rotary switch.
- Rugged aluminum anodized housing with integrated heat sink.
- 187 x 131 x 65 mm
Product Advantage
Each message captured from the in-vehicle network (SerDes, CAN, LIN, Car Ethernet ......) is encapsulated in a standard transport layer frame. This needs to be embedded in an IEEE 802.3-compliant standard Ethernet frame. Data from non-Ethernet communication systems as well as Ethernet-based systems is transmitted in Ethernet frames and is explicitly identified using the PLP/TECMP protocol. Ethernet frames are transmitted without changing them or their headers. All messages are intact. This ensures that analysis tools can easily access unaltered data, including time-stamped logs from all bus systems in a file.
All products in our capture module family support 802.1AS for time synchronization in applications with multiple communication technologies (SerDes, CAN, LIN, Automotive Ethernet, etc.) recorded by our capture modules. In addition, PLP and TECMP protocols are supported to provide synchronized log files containing critical metadata. ASAM CMP will also be supported.
