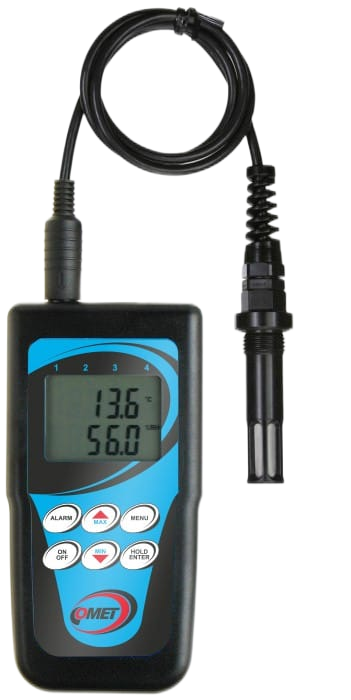

Temperature and Humidity Meter for Compressed Air Measurement
C3121P
Thermometer and hygrometer for measuring temperature and relative humidity of compressed air up to 25 bars with 1 meter long cable. Audible and visual alarm for temperature measurement. Minimum and maximum measurements can be stored. Function hold - manually stores the actual value for future display.
Simultaneous temperature and relative humidity readings, optional dew point temperature reading, external temperature and humidity probe with 1 meter cable. Optional 2 meter and 4 meter cables are available.
Warranty: 3 years
Measurement parameters
Temperature
Relative Humidity
Count (Dew Point...)
Temperature Sensor
Measurement range: -30 to +105 °C
Measurement accuracy: ±0.4 °C
Resolution: 0.1 °C
Humidity Sensor
Measurement range: 0 to 100 % relative humidity
Measurement accuracy: ±2.5 % RH (5 to 95 % at 23 °C)
Resolution: 0.1% Relative Humidity
outdoor spot
Measurement range: -50 to +80 °C
Measurement accuracy: ±1.5 °C at ambient temperature T 30 %.
Resolution: 0.1 °C
General Technical Data
Operating temperature: -10 to +60 °C for electronic devices, -30 to +105 °C for external probes
Channel: 1 connectable temperature and humidity probe
Audio Signal + Backlight LCD: Yes
Measurement interval and display reading refresh: 0.7 to 5 seconds
Battery: 9 V or 12 V power adapter with 9 V Ni-MH battery
Battery life: approx. 4 months
Protection level: IP20 for electronic equipment, IP40 for sensors.
Dimensions (without connector): 141 x 71 x 27 mm
External probe cable length: 1 m
Weight (including battery): approx. 150 g
Warranty: 3 years
- C3121P
- Operator's Manual
- Traceable calibration certificate
- 9 V Battery
- Plastic Transportation Box
