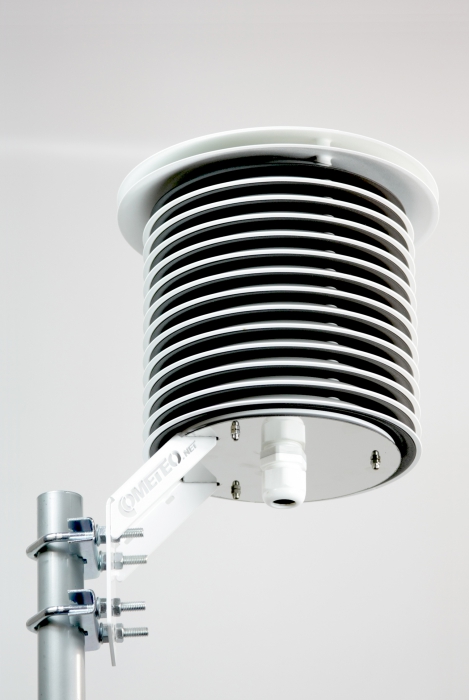

This radiation shield is specifically designed to protect temperature sensors or combined temperature and humidity sensors, effectively reducing the interference caused by solar radiation on measurement results. It features a passive, naturally ventilated design and is suitable for meteorological sensors with diameters ranging from 13 to 18 mm.

The unique louver-style protective design effectively:

• Reduce direct sunlight and the absorption of radiant heat
• Improve air circulation around the sensors to ensure that the meteorological monitoring system obtains more accurate and stable climate measurement data.

The outer layer is made of ASA plastic, which features high reflectivity, UV resistance, and excellent weather resistance, making it resistant to aging and discoloration even after prolonged outdoor exposure; the inner layer is made of a matte black material that effectively prevents internal light reflection. The assembly consists of 14 louvers, each with a diameter of 210 mm, providing all-around protection for the sensor.
