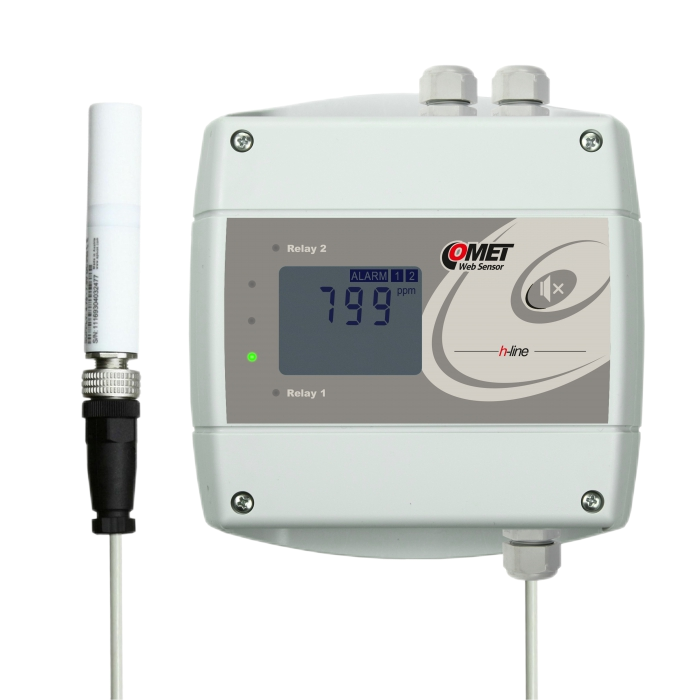

Remote CO2 Concentration Transmitter, Ethernet Interface, 2 Relay Outputs
H5521
CO2 level transmitter with two output relays.
CO2 measurement is based on a dual source, dual beam process. Long-term stability of CO2 measurements is ensured by the proven non-dispersive infrared (NDIR) CO2 measurement unit. A unique patented auto-calibration procedure ensures high reliability, long-term stability by compensating for the aging of the IR source and eliminating the need for periodic recalibration in the field.
The device is equipped with a CO2 probe with 1 meter cable. Optional cable lengths of 2 or 4 meters are available.
CO2 concentration is shown on the display or signaled by colored LEDs.
Measurement data can be processed and analyzed in the following ways:
Online Processing on COMET Cloud
Processing with COMET Database Software
Integrating data into third-party systems
Warranty: 3 years
Measurement parameters
carbon dioxide CO2
Carbon Dioxide Sensor
Measurement range: 0 to 10000 ppm
Measurement accuracy: ± (100ppm + 5% of reading), temperature 25°C, air pressure 1013hPa
Resolution: 1 ppm
Relay Output
Quantity: 2
Maximum voltage: 50 V
Maximum current: 2 A
Maximum power: 60 VA
General Technical Data
Operating temperature: -30 to +80 °C
Channel: 1 external CO2 sensor
Audible alarm: via built-in buzzer - switchable
Output: Ethernet
Measurement interval: 2 s
Communication protocols: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail (supports SMTP authentication), SNMP Trap, Syslog
Battery: 9-30 Vdc
Protection level: IP30 for electronic equipment; IP65 for sensors.
Dimensions: 136 x 150 x 45 mm
CO2 external probe cable length: 1 m (optional 2 or 4 m)
Weight: approx. 360 g
Warranty: 3 years
- H5521
- Operator's Manual
- Traceable calibration certificate
- Free software for configuring the transmitter TSensor
- COMET Cloud 3 Months License
Delivery without power supply
