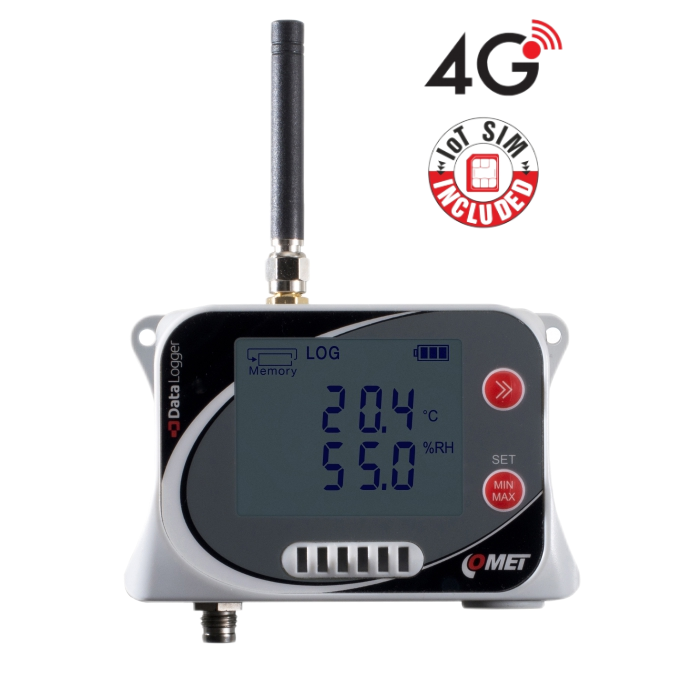

U3631Gsim 物聯網無線溫度和相對濕度數據記錄儀,帶其他溫度探頭的連接器,內置4G調制解調器

U3631Gsim

The IoT Wireless Data Logger Kit comes with a built-in GSM modem and fixed-fee SIM card for instant connection to COMET Cloud.



測量值可以發送到互聯網存儲COMET Cloud,這是一個完整的監測、報警和分析系統。如果超過設置的限制,則從COMET Cloud發送電子郵件。



警報也通過LED、LCD和內置蜂鳴器進行本地指示。

在非易失性電子存儲器中執行記錄。數據可以通過附帶的USB-C電纜傳輸到電腦。



The device includes a traceable calibration certificate and declares that the calibrator's metrological traceability is based on the EN ISO/IEC 17025 standard.

Warranty: 3 years

Temperature Sensor
Measurement range: -20 to +60 °C
Measurement accuracy: ±0.4°C
Resolution: 0.1 °C


Temperature Sensor - External Probe PT1000
Measurement range: -90 to +260 °C
測量精度:±0.2°C(-50至+100°C);
讀數在+100至+260°C範圍內為±0.2%;
讀數在-90至-50°C範圍內為±0.4%
Resolution: 0.1 °C


Humidity Sensor
Measurement range: 0 to 100 % RH
Measurement accuracy: ±1.8%RH
Resolution: 0.1 RH


outdoor spot
Measurement range: -90 to +60 °C
Measurement accuracy: ±1.5 °C for ambient temperature T 30 %.
Resolution: 0.1 °C


GSM Modem Parameters
LTE Cat 1: LTE FDD/GSM/GPRS/EDGE
Supported network types: GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20


General Technical Data
Operating temperature: -20 to +60 °C
通道:內部溫度和濕度傳感器,1個外部溫度探頭
Total storage capacity: 500,000 values in non-cyclic recording mode; 350,000 values in cyclic recording mode
Recording interval: adjustable from 1 second to 24 hours
Display and alarm update: 1 second, 10 seconds, 1 minute adjustable
Data logging modes: Non-cyclic - stops logging when the memory is full; cyclic - the earliest data is overwritten with new data after the memory is full
Real Time Clock: Year, Year, Month, Day, Hour, Minute, Seconds
Battery: Rechargeable lithium battery A8200, 3.6V/5200mAh
Protection level: IP67 for electronics; IP30 for sensors
Size: 61 x 93 x 53 mm with antenna 120 x 93 x 53 mm
Weight (including battery): approx. 260 g
Warranty: 3 years

  • U3631Gsim

  • Operator's Manual

  • Traceable calibration certificate

  • Rechargeable Battery

  • Power supply

  • USB-C cable

  • Free analysis software COMET Vision

  • Fixed-fee SIM cards for the Internet of Things

  • 3 Months COMET Cloud

Delivery without external probe
