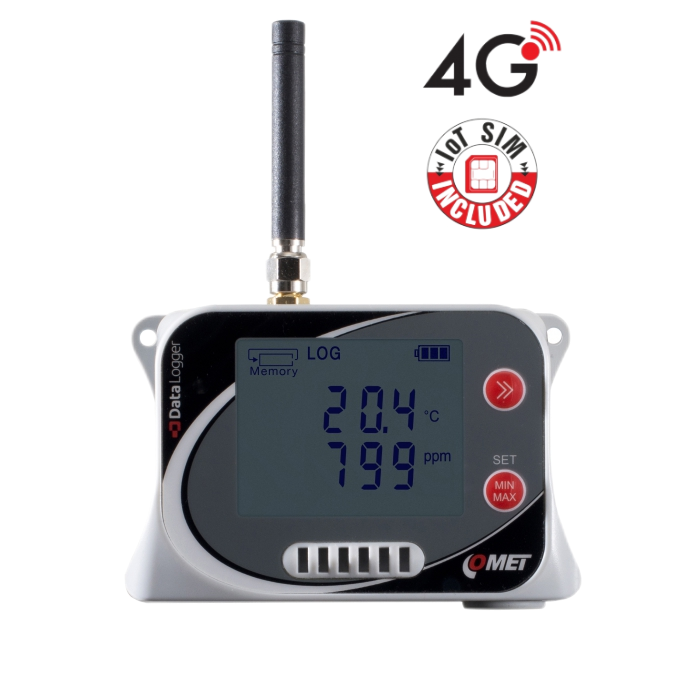

U4440Gsim 物聯網無線溫度、相對濕度、二氧化碳和大氣壓數據記錄器,內置4G調制解調器和固定資費SIM卡

U4440Gsim

The IoT Wireless Data Logger Kit comes with a built-in GSM modem and fixed-fee SIM card for instant connection to COMET Cloud.


物聯網數據記錄儀旨在通過內置傳感器記錄溫度、濕度、大氣壓力和二氧化碳。如果超過設置的限制,則從COMET Cloud發送電子郵件。


Alarms can also be displayed locally via LEDs, LCDs and the built-in buzzer.


Recording takes place in a non-volatile electronic memory. Data can be transferred to a computer via the included USB-C cable.


The device includes a traceable calibration certificate and declares that the calibrator's metrological traceability is based on the EN ISO/IEC 17025 standard.

Warranty: 3 years

Temperature Sensor
Measurement range: -20 to +60 °C
Measurement accuracy: ±0.4°C
Resolution: 0.1 °C


Humidity Sensor
Measurement range: 0 to 100 % RH
Measurement accuracy: ±1.8%RH
Resolution: 0.1 RH


outdoor spot
Measurement range: -90 to +60 °C
Measurement accuracy: ±1.5 °C for ambient temperature T 30 %.
Resolution: 0.1 °C


CO2 傳感器
測量範圍:0 至 5000 ppm
測量精度:±(50ppm+讀數的3%),溫度為25°C和1013hPa
Resolution: 1 ppm


氣壓傳感器
Measurement range: 600 to 1100 hPa
測量精度:23 °C 時,800 至 1100 hPa 範圍內的±1.3 hPa
Resolution: 0.1 hPa


GSM Modem Parameters
LTE Cat 1: LTE FDD/GSM/GPRS/EDGE
Supported network types: GSM/GPRS/EDGE 900/1800 MHz
LTE FDD B1/B3/B5/B7/B8/B20


General Technical Data
Operating temperature: -20 to +60 °C
通道:內部溫度、濕度、二氧化碳和壓力傳感器
Total storage capacity: 500,000 values in non-cyclic recording mode; 350,000 values in cyclic recording mode
Recording interval: adjustable from 1 second to 24 hours
COMET Cloud logging interval: from 5 minutes onwards
Display and alarm update: 1 second, 10 seconds, 1 minute adjustable
Data logging modes: Non-cyclic - stops logging when the memory is full; cyclic - the earliest data is overwritten with new data after the memory is full
Real Time Clock: Year, Year, Month, Day, Hour, Minute, Seconds
Battery: Rechargeable lithium battery A8200, 3.6V/5200mAh
Protection level: IP20
Size: 61 x 93 x 53 mm with antenna 120 x 93 x 53 mm
Weight (including battery): approx. 260 g
Warranty: 3 years

  • U4440Gsim

  • Operator's Manual

  • Traceable calibration certificate

  • Rechargeable Battery

  • Power supply

  • USB-C cable

  • Free analysis software COMET Vision

  • Fixed-fee SIM cards for the Internet of Things

  • 3 Months COMET Cloud
