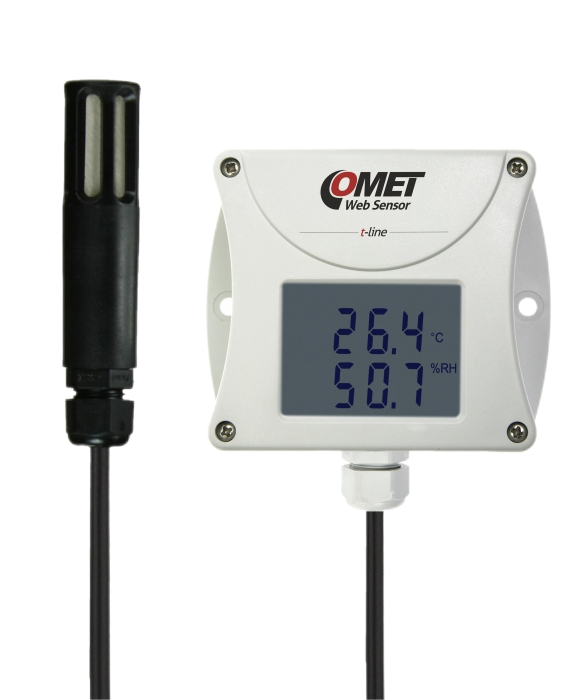

T3511 網絡傳感器 – 遠程溫濕度計,以太網接口。用於環境監測的氣候傳感器

T3511
環境溫度、相對濕度 t-line 網絡傳感器。遠程報警。
帶相對濕度和溫度探頭的網絡傳感器。設備電纜上配有 T+RH 探頭。
The high-precision capacitive polymer sensor ensures excellent long-term calibration stability and very high accuracy. The two-line LCD display is a major advantage. Measurements can also be converted to other humidity interpretations: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific heat.
The device comes with a T+RH probe with 1 meter cable.
Process and analyze measurement data:
Online COMET Cloud
COMET Database Software
Integration with third party systems
Warranty: 3 years
- Technical Parameters
- Delivery list
Measurement parameters
Temperature
Relative Humidity
Count (Dew Point...)
Temperature Sensor
測量範圍:-30 至 +105 °C
Measurement accuracy: ±0.6 °C
Resolution: 0.1 °C
Humidity Sensor
Measurement range: 0 to 100 % relative humidity
Measurement accuracy: ±2.5 % relative humidity (5 to 95 % at 23 °C)
Resolution: 0.1% Relative Humidity
outdoor spot
Measurement range: -60 to +80 °C
Measurement accuracy: ±1.5 °C at ambient temperature T 30 %.
Resolution: 0.1 °C
General Technical Data
Operating temperature: -30 to +80 °C
通道:1個可連接的溫度和濕度探頭
Measurements: Dew point, Absolute humidity, Specific humidity, Mixing ratio, Specific heat
Output: Ethernet
Humidity sensor temperature compensation range: covers all temperature ranges
Measurement interval: 2 seconds
Available Temperature Units: Celsius, Fahrenheit
Communication Protocol: WWW, ModbusTCP, SNMPv1, SOAP, XML
Alerting protocols: Email, SNMP Trap, System Logs
Battery: 9-30 Vdc
Protection level: IP30 for electronic devices; IP40 for sensors.
尺寸: 88.5 x 93 x 39.5 mm;外部探頭長度/直徑 88/18 mm
外部探頭電纜長度:1 m
重量: 約 210 g
Warranty: 3 years
- T3511
- Operator's Manual
- Traceable calibration certificate
- Free software for configuring the transmitter TSensor
- 3 months of COMET Cloud service
