Measurement parameters
Current

Current Input
Accuracy specification: ±0.1% FS from 0°C to +50°C, ±0.3% FS from -30°C to +80°C
Resolution: 1 µA
A/D converter resolution: 24-bit sigma-delta
Input resistance: 20 Ω
Measurement interval: 1 s

General Technical Data
Operating temperature: -30 to +80 °C
Channel: 2 current inputs
Output: Ethernet
Measurement interval: 1 s
Communication protocol: WWW, Modbus TCP, SNMPv1, SOAP, XML
Alert protocol: E-mail, SNMP Trap, Syslog
Battery: 9-30 Vdc
Protection level: IP30
Size: 88 x 126 x 39.5 mm
Weight: approx. 150 g
Warranty: 3 years

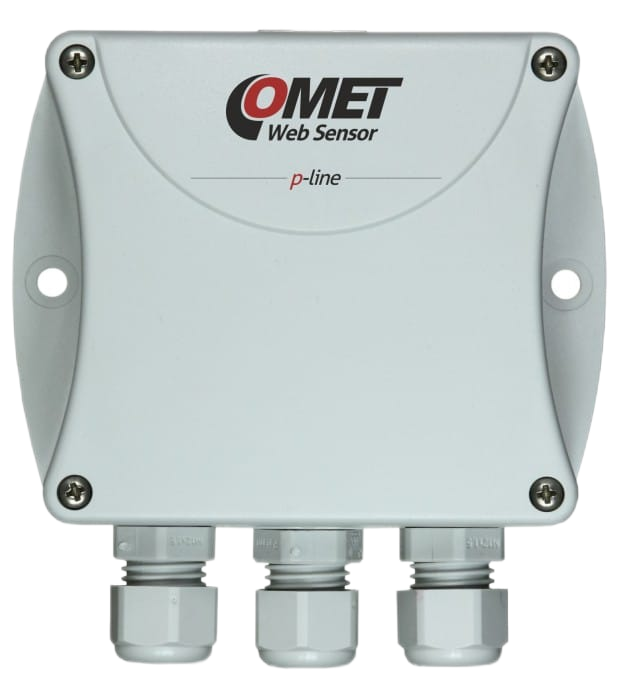

• P2520
• Operator's Manual
• Traceable calibration certificate
• Free software for configuring the transmitter TSensor
• COMET Cloud 3 Months License

Delivery without power supply
