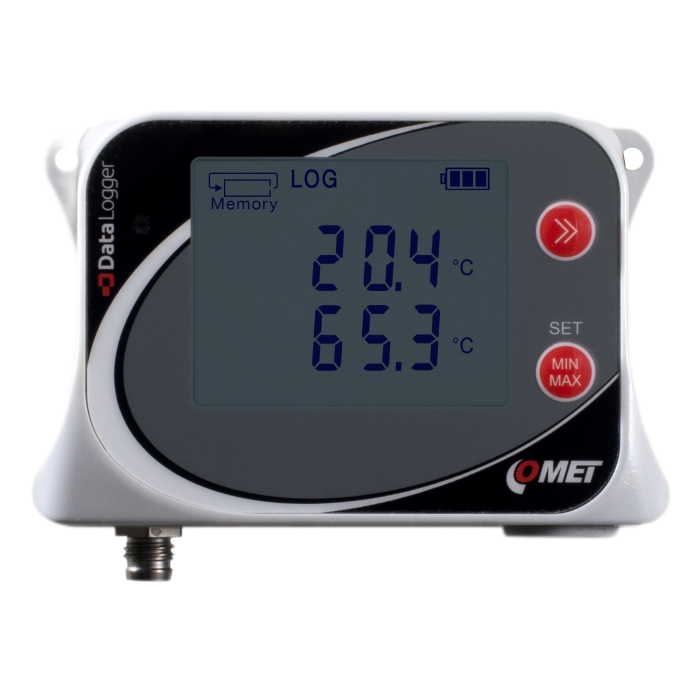

U0122 Dual Channel Temperature Data Logger - for an external Pt1000 probe with internal temperature sensor

U0122

The DataCORDER is designed to record the temperature of an external Pt1000 probe and an internal temperature sensor.



Recordings are made in a non-volatile electronic memory. Data can be transferred to a computer via USB-C.



If the set limit is exceeded, an alarm will be generated through the LED, LCD and built-in buzzer.



The device includes a traceable calibration certificate and declares that the calibrator's metrological traceability is based on the EN ISO/IEC 17025 standard.

Warranty: 3 years

Temperature Sensor
Measurement range: -30 to +70 °C
Measurement accuracy: ±0.4°C
Resolution: 0.1°C

Temperature Sensor - External Probe PT1000
Measurement range: -90 to +260 °C
Measurement accuracy: ±0.2°C (-50 to +100°C);
Readings from +100°C to +260°C are ±0.2%;
Readings ±0.4% over the range of -90 to -50°C.
Resolution: 0.1°C

General Technical Data
Operating temperature: -30 to +70 °C
Channel: Internal temperature + 1 external temperature probe
Total storage capacity: 500,000 values in non-cyclic recording mode; 350,000 values in cyclic recording mode
Recording interval: adjustable from 10 seconds to 24 hours
Display and alarm update: 1 second, 10 seconds, 1 minute adjustable
Data logging modes: Non-cyclic - stops logging when the memory is full; cyclic - the earliest data is overwritten with new data after the memory is full
Real Time Clock: Year, Year, Month, Day, Hour, Minute, Seconds
Battery: 3.6 V Lithium Ion, AA type
Protection level: IP67
Dimensions: 61 x 93 x 32 mm
Weight (including battery): approx. 120 g
Warranty: 3 years
  • U0122
  • Operator's Manual
  • Traceable calibration certificate
  • 1 x 3.6V lithium battery
  • Free analysis software COMET Vision
*Delivery without external probe, without USB communication cable
