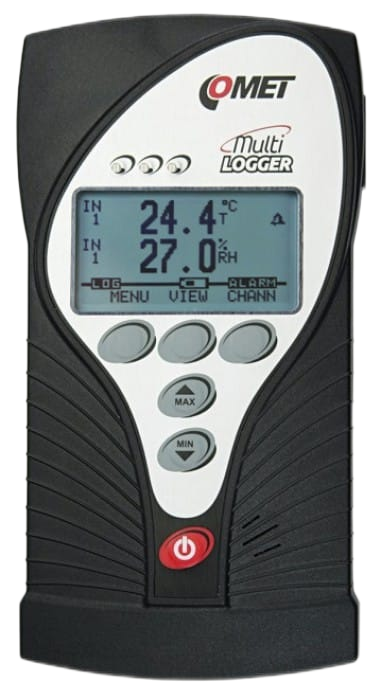

以太網多功能數據記錄儀 – 4路MiniDIN輸入的溫濕度計

M1140
帶 MiniDIN 輸入的通用數據記錄儀,最多可連接四個溫度和/或濕度探頭。
The multifunction data logger can be permanently installed on an Ethernet network or used as a portable device.
A traceable calibration certificate to EN ISO/IEC17025 is included.
The Multi-Function Data Logger is a battery-powered data logger capable of measuring and recording sensor and electrical values through its inputs.
The multifunctional data logger can be connected to an Ethernet network. Measurements can be viewed on a browser, saved and downloaded for subsequent analysis.
Warranty: 3 years
- Technical Parameters
- Delivery list
Measurement parameters
Temperature
Relative Humidity
Count (Dew Point...)
Temperature Sensor - External Probe PT1000
Measurement range: -200 to +600 °C
Measurement accuracy: ±0.2°C (-200 to +100°C); ±0.2% of measured value in the +100 to +600°C range
Resolution: 0.1 °C
Temperature + Humidity Sensor - External Probe T+RH DIGI
Measurement range: depends on the connected probe Digi/M
Measurement accuracy: depends on the connected probe Digi/M
Resolution: 0.1 °C
outdoor spot
Measurement range: depends on the connected probe Digi/M
Measurement accuracy: depends on the connected probe Digi/M
Resolution: 0.1 °C
General Technical Data
Operating temperature: -10 to +60 °C
通道:4個外部溫度探頭或可連接的溫度+濕度探頭
Measurement: Dew point temperature, Absolute humidity, Specific humidity, Mixing ratio, Specific enthalpy
Total storage capacity: 1,000,000 values in non-cyclic recording mode; 600,000 values in cyclic recording mode
Recording interval: adjustable from 1 second to 24 hours
Display and alarm updates: every 10 seconds
Data logging modes: Non-cyclic - stops logging when the memory is full; cyclic - the earliest data is overwritten with new data after the memory is full
Available Temperature Units: Celsius, Fahrenheit
Communication Interface: Ethernet, USB, RS232
Ethernet communication protocols: WWW, SNMPv1, XML, DATALINK.
Alarm Protocol: Email
Power: AC adapter 230Vac/5Vdc (required for Ethernet interface)
Battery life: 3 - 4 weeks
Protection level: IP20
Dimensions (without connector): 178 x 95 x 37 mm without connection cable
Weight (including battery): approx. 380 g
Warranty: 3 years
- M1140
- Operator's Manual
- Traceable calibration certificate
- 3 AA type rechargeable batteries
- Power supply
- USB-C cable
- Wall Mount Bracket
- Free analysis software COMET Vision
Delivery without external probe
