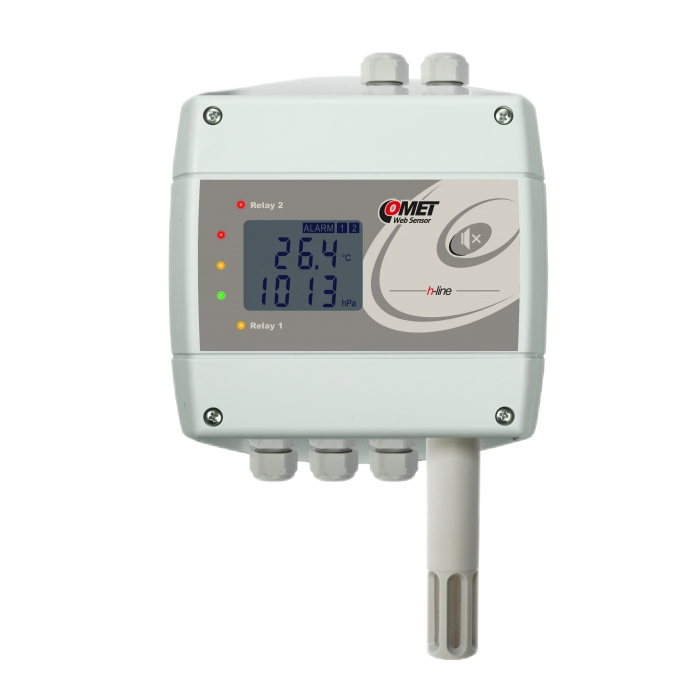

H7530 帶以太網接口和繼電器的溫濕度計氣壓計

H7530

環境溫度、相對濕度、大氣壓力傳感器,帶有兩個繼電器輸出。濕度指數讀數。

H7530傳感器專為在線監測無侵蝕物質的空氣的溫度、相對濕度而設計。三個二進制輸入用於檢測雙態信號,這是其優勢。其他設備可通過兩個繼電器輸出進行控制。

高精度電容聚合物傳感器確保出色的長期校準穩定性和極致準確度。測量值還可轉換為其他濕度解釋:露點溫度、絕對濕度、比濕、混合比、比熱。

Measurement data can be processed and analyzed in the following ways:

Online Processing on COMET Cloud
Processing with COMET Database Software
Integrating data into third-party systems

Warranty: 3 years

Measurement parameters
Temperature
Relative Humidity
Count (Dew Point...)
Air Pressure
雙態信號
Temperature Sensor
測量範圍:-30 至 +80°C
Measurement accuracy: ±0.4°C
Resolution: 0.1 °C
Humidity Sensor
Measurement range: 0 to 100 % relative humidity
Measurement accuracy: ±2.5 % relative humidity (5 to 95 % at 23 °C)
Resolution: 0.1% Relative Humidity
outdoor spot
Measurement range: -60 to +80 °C
Measurement accuracy: ±1.5 °C at ambient temperature T 30 %.
Resolution: 0.1 °C
Atmospheric Pressure Sensor
Measurement range: 600 to 1100 hPa
Measurement accuracy: ±1.3 hPa (23 °C, 800 to 1100 hPa)
Resolution: 0.1 hPa
Relay Output
Quantity: 2
Maximum voltage: 50 V
Maximum current: 2 A
Maximum power: 60 VA
二進制輸入
數量:3
二進制輸入信號:幹接點、集電極開路或雙態電壓信號。
輸入端沒有電隔離。
二進制輸入的最小脈衝持續時:500 ms
開路觸點上的電壓:< 3.3 V
低電壓等級:0 至 +0.5 V
高電壓等級:+3.0 至 +30 V
General Technical Data
Operating temperature: -30 to +80 °C
Channel: Built-in temperature, humidity and pressure sensors
Audible alarm: via built-in buzzer - switchable
Measurements: Dew point, Absolute humidity, Specific humidity, Mixing ratio, Specific heat
Output: Ethernet
測量間隔:2 s
Humidity sensor temperature compensation range: covers all temperature ranges
Available temperature units: degrees Celsius, degrees Fahrenheit
Communication protocol: WWW, Modbus TCP, SNMPv1, SOAP, XML
Alarm protocols: E-mail (supports SMTP authentication), SNMP Trap, Syslog
Battery: 9-30 Vdc
防護等級: IP40
Dimensions: 136 x 213 x 45 mm; stem length 75 mm
重量: 約360 g
Warranty: 3 years

  • H7530
  • Operator's Manual
  • Traceable calibration certificate
  • Free software for configuring the transmitter TSensor
  • COMET Cloud 3 Months License
  • 交付時不包括電源
