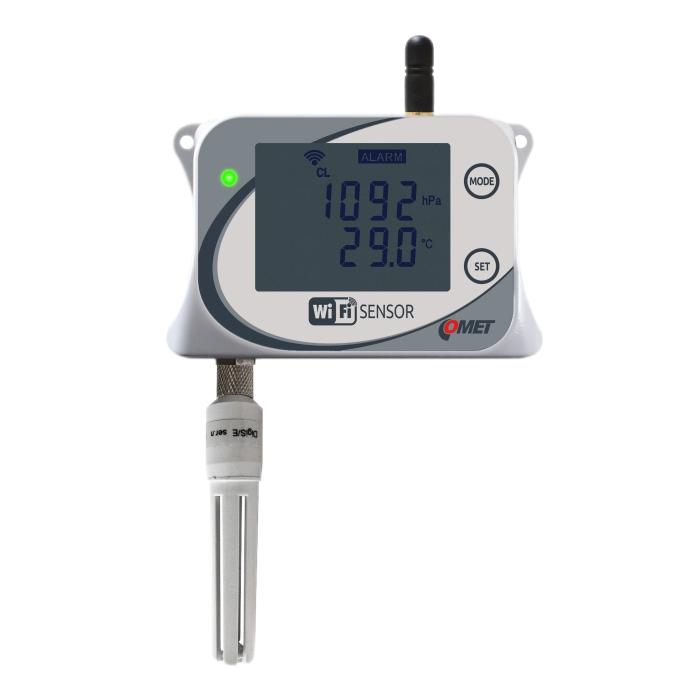

W7710 帶集成探頭的WiFi溫度、相對濕度和大氣壓力傳感器

W7710
帶 WiFi 接口的傳感器被設計用於測量連接探頭(已隨貨提供)的測量溫度、相對濕度和氣壓。
Communicates with the sensor via a wireless WiFi network. The device sends the measured values to the online COMET Cloud (minimum interval 5 minutes) or to the COMET database. The measured values can be displayed on an integrated web page or made available to third-party systems via Modbus TCP, SNMP, JSON and XML. The measured values are displayed on the LCD monitor.
The device continuously evaluates the alarm limits of the measured values and sends an e-mail or notification via an acoustic signal if the alarm limits are exceeded. Two alarm limits are supported per measurement channel.
The main advantage of sensors with a WiFi interface is that they can be simply deployed where a WiFi infrastructure already exists, simply by placing them in the desired location and connecting them to a WiFi network. Simply place the sensor in the desired location and connect it to the WiFi network. the WiFi sensor, combined with the COMET Cloud, provides a comprehensive monitoring and alarming solution, eliminating the need for a server solution. However, if necessary, the sensors can also connect to third party systems via Modbus TCP protocol, SNMP protocol or by sending JSON data to an http server. The sensor also allows values to be provided via XML and JSON using HTTP GET requests.
得益於這些獨特的功能,WiFi 傳感器的應用領域非常廣泛The
Warranty: 3 years
- Technical Parameters
- Delivery list
Measurement parameters
Temperature
Relative Humidity
Count (Dew Point...)
Air Pressure
Temperature Sensor
Measurement range: -20 to +60 °C
Measurement accuracy: ±0.4 °C
Resolution: 0.1 °C
Humidity Sensor
Measurement range: 0 to 95 % relative humidity
Measurement Accuracy: ±1.8 % RH (0 to 90 %, 23 °C)
Resolution: 0.1% Relative Humidity
outdoor spot
Measurement range: -60 to +60 °C
Measurement accuracy: ±1.5 °C at ambient temperature T 30 %.
Resolution: 0.1 °C
Atmospheric Pressure Sensor
Measurement range: 600 to 1100 hPa
測量精度:23 °C 時為 ±1.3 hPa
Resolution: 0.1 hPa
General Technical Data
Operating temperature: -30 to +60 °C
通道:溫度傳感器、濕度傳感器和大氣壓力
Recording time interval: 1 second
Time interval for sending data to COMET Cloud: 5 minutes to 12 hours adjustable
Communication protocols: HTTP(S), SMTP, ModbusTCP, SNMP (v1, v2c, v3), HTTP POST, HTTP GET (JSON, XML)
Alarm signals: e-mail, sound, LEDs
Battery: 5.0 to 5.4 VDC; 150 mA consumption (500 mA maximum); USB-C connector
Radio component: Frequency: 2.4 GHz; Maximum transmit power: 18 dBm; Standard: IEEE 802.11 b/g/n
WiFi Security: Open, WEP, WPA, WPA2, WPA2-PMF, WPA3, WPA2-EAP
Protection level: IP30
Dimensions: 156 x 93 x 32 mm
Weight: approx. 125 g
Warranty: 3
- HK-W7710
- Operator's Manual
- Traceable calibration certificate
- Temperature and Relative Humidity Probes
- Battery
- USB-C Cable
- 3 months of COMET Cloud service
