HONGKE Solutions] GNSS Simulator Protects the Logistics Industry

preamble

The HONGKE GNSS simulator can help to complete the positioning accuracy and interference immunity test of HONGKE MSR transportation data logger with high efficiency and accuracy in the shortest time.

A complete GNSS simulation test process ensures that during transportation or storage of goods, users know exactly when and where abnormal events outside of predefined tolerances occur, and that location data is recorded quickly and accurately. In the event of damage or anomalies, the location of the cargo can also be recognized and recorded immediately.

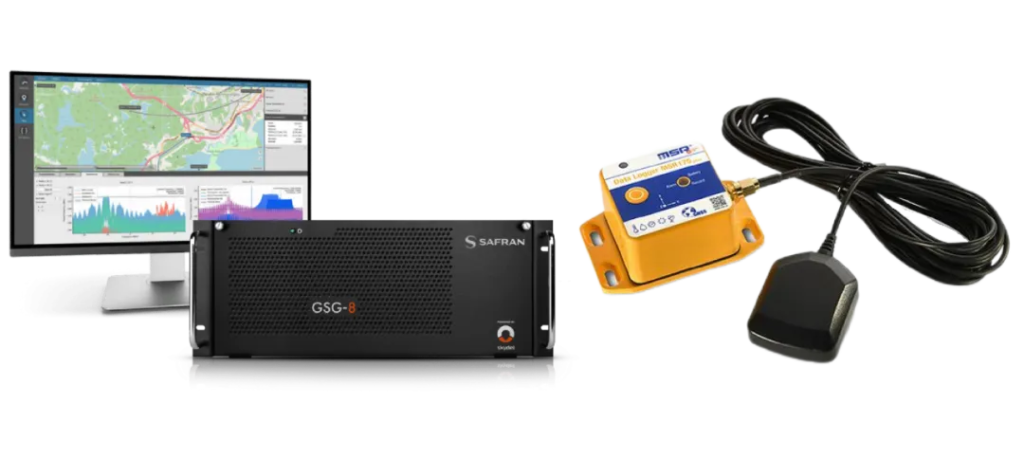

HONGKE MSR Transportation Data Recorder

HK-MSR175Plus

The core function of the MSR175Plus is to monitor and record temperature, humidity, air pressure and positioning data during transportation.

The device has a built-in GNSS module to accurately record the geographic location of the cargo and transmit the data to a computer or mobile device for subsequent analysis and evaluation.

This product is particularly suitable for the logistics and transportation industry, especially in long-distance transportation or special environmental monitoring scenarios. By monitoring temperature and humidity changes in real time during transportation, the quality and integrity of goods can be effectively protected.

Product Features:

  • Transportation Data Recorder with GNSS Receiver
  • Simultaneous recording of ±15g and ±200g vibration, as well as temperature, humidity, air pressure and light.
  • Stores 4 million measurements
  • Easy to operate and offers a wide range of data evaluation options

Problems faced

HONGKE MSR Transportation Data Recorder HK-MSR175Plus is an important tool to ensure the safe transportation of highly sensitive and valuable goods.

Each transportation mission can span months and thousands of kilometers. To ensure that the product is delivered to the customer with high standards and reliability, comprehensive testing is essential. However, it is clearly not feasible for HONGKEI and MSR engineers to drive hundreds of kilometers with each HK-MSR175Plus for on-site testing and validation.

In addition, the sales and technical staff of HONGKE MSR Transportation Data Recorder HK-MSR175Plus, though with professional background in data recording and logistics transportation, had limited understanding of the technical details of the positioning function. Therefore, they wanted to complete the positioning verification through the simplest and standardized testing method.

Hi-Tech Solutions

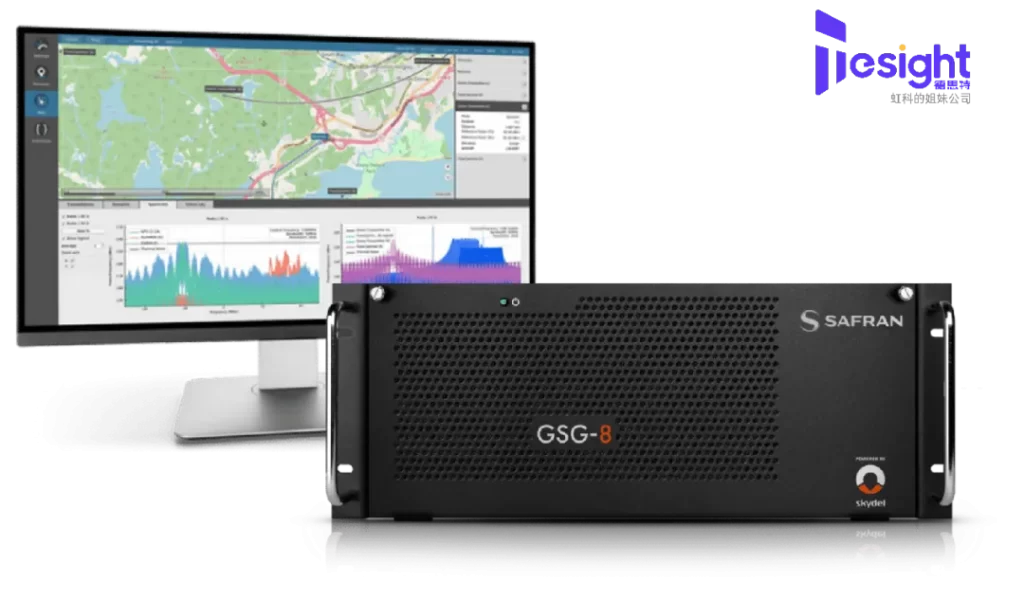

Avision GNSS Simulation Solution is a Software-Defined GNSS simulation platform dedicated to providing users with a professional and accurate GNSS simulation experience through an easy-to-use and intuitive interface.

Core features include:

  • Flexible software definition architecture
  • Supports full-constellation, full-band simulation
  • 1000Hz simulation iteration rate for high-speed and high-precision testing
  • Modern and intuitive GUI interface
  • Provide API to support secondary development
  • Supports signal propagation and error modeling.

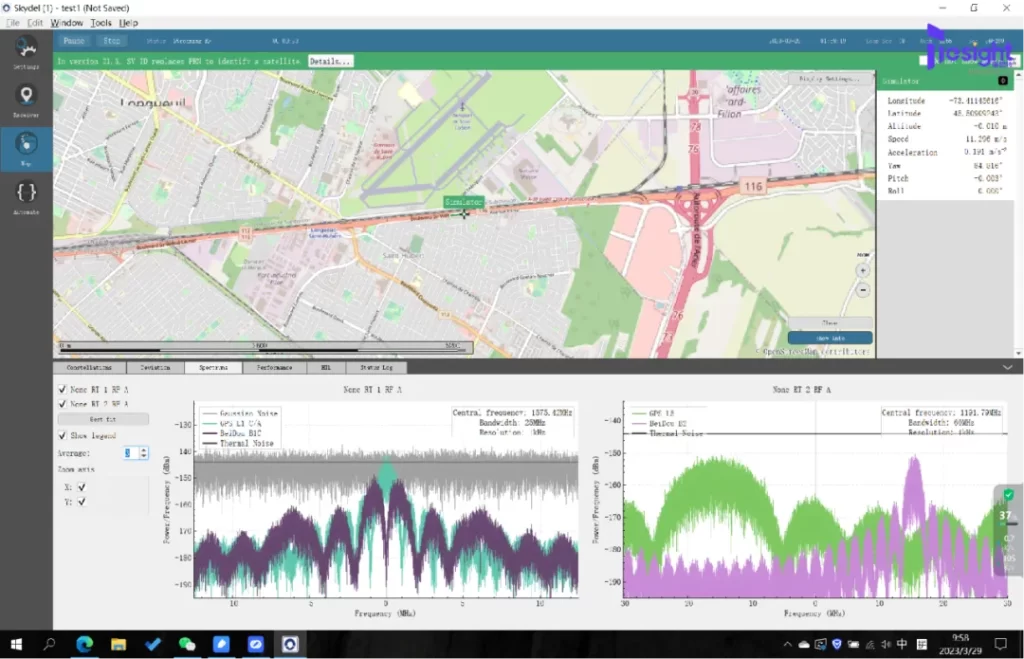

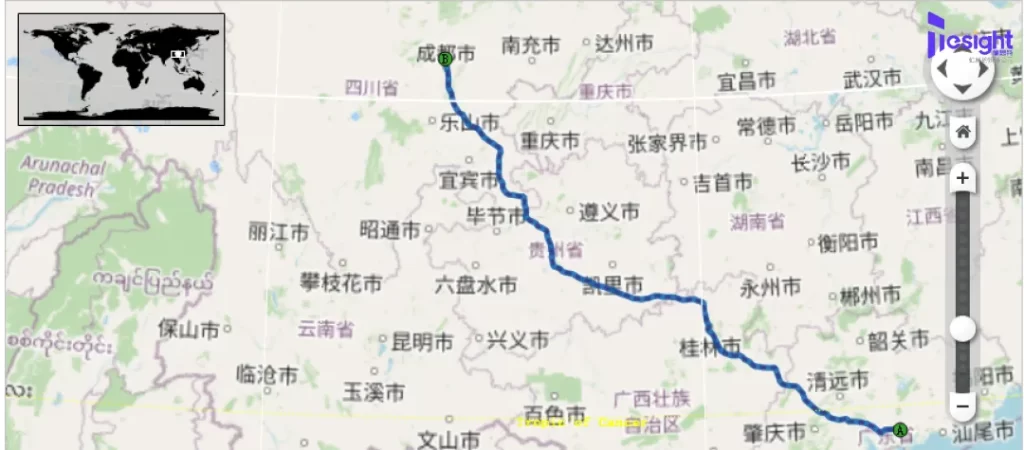

In HONGKE GNSS simulator, users can set up fixed point simulation or simple track simulation to verify the stability and accuracy of the equipment, and can also create corresponding transportation paths and tracks directly in the system to simulate each transportation scene visually.

The ability to set up worldwide transportation routes in the device without having to physically go to the site greatly assists engineers in quickly conducting global testing.

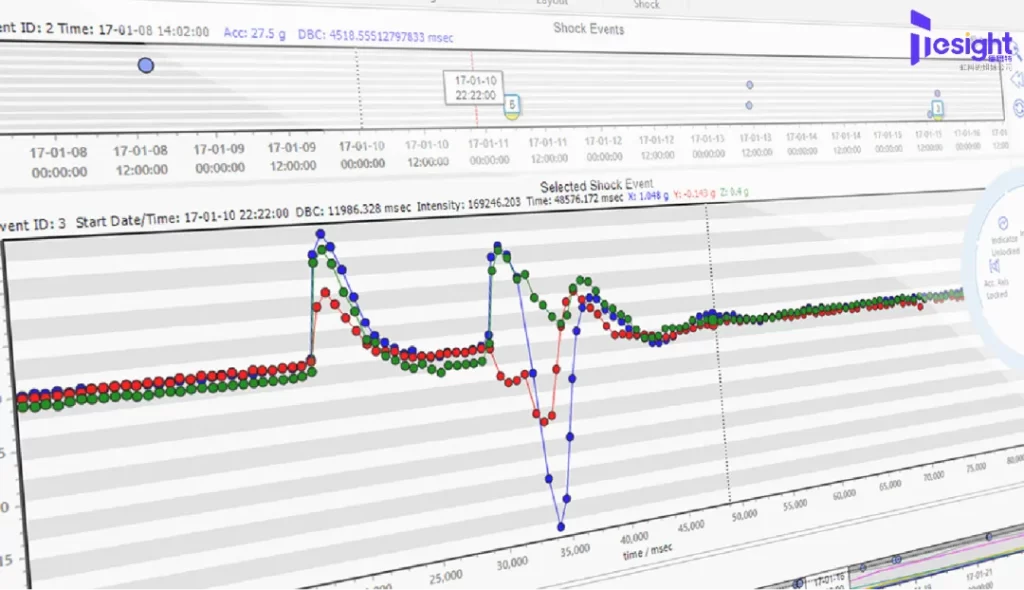

Hongke MSR Transportation Data Recorder HK-MSR175Plus After connecting and powering on the device, the technician only needs to set up the relevant test tracks through the intuitive GUI of the GNSS simulator to start the test. There is no need to continuously intervene in the testing process, and after the completion of the test, the data can be exported via USB for viewing and verifying the positioning data.

In addition, the HK-MSR175Plus GNSS simulator can also be used to simulate abnormal situations, such as GNSS signal loss or signal interference, to further test the HK-MSR175Plus's ability to record data in abnormal environments.

They were surprised to find that GNSS testing could be accomplished through computers instead of traveling to and from the field to complete the complex simulation and verification process. This greatly improves the efficiency of testing, and allows for quick location verification and troubleshooting when customers encounter problems.

Conclusion

HONGKE MSR Transportation Data Recorder HK-MSR175Plus is a market-leading transportation data recording device, favored by TSMC and other customers. Therefore, ensuring the best performance and high reliability is not only a responsibility but also a commitment to the market.

The HONGKE GNSS Simulator provides HONGKE and MSR engineers with a more efficient, faster and easier way to test GNSS performance.

Completing the test of HK-MSR175Plus with HONGKE's GNSS simulator not only significantly improves the test efficiency, but also greatly enhances the test accuracy, providing more reliable positioning and data verification for the logistics and transportation industries.
