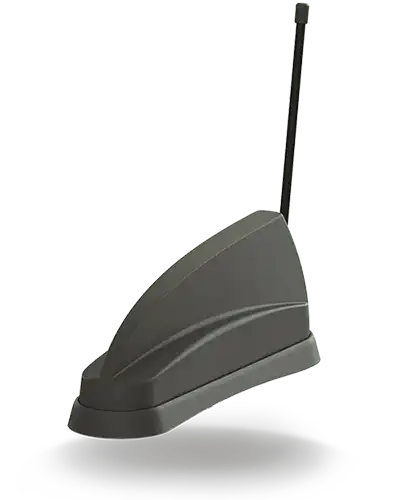

HONGKE TS-GPSD-6-60 Series
4G/5G MiMo + GPS/GNSS + Optional MiMo WiFi Shark Fin Antenna

The Sharkfin housing of HTC TS-GPSD-6-60 series antennas has built-in 2×2 MiMo function for 4G/5G (617-960/1710-6000MHz) and optional 2×2, 3×3 or 4×4 MiMo dual-band WiFi with WiFi 6 support, including active antennas for GPS/GLONASS/Galileo/ BeiDou, with 26dB gain LNA, and high level filtering for LTE band 13/14 operation. It includes an active antenna for GPS/GLONASS/Galileo/ BeiDou with 26dB gain LNA and high order filtering for LTE band 13/14 operation.

Quote Now

HONGKE Antenna Features

HONGKE TS-GPSD-6-60 series antennas are equipped with an integrated stud mount for external whip antennas supporting VHF, UHF, or 700/800 MHz antennas.The TS-GPSD series requires only a single hole to install, which reduces damage to the vehicle, shortens installation time, and lowers costs, while preserving the resale value of the vehicle.

  • Coverage 2×2 MiMo 4G/5G LTE
  • Up to 4×4 MiMo WiFi & GPS/GNSS
  • Single-hole installation - reduces vehicle damage, shortens installation time and lowers costs
  • Supports integration of all antenna functions into a single housing
  • Flame retardant cables according to UNECE R118 standard
  • IP69K certified

Wide range of applications

public security

Public Security

mass transit

Public Transit

In-vehicle communication

Vehicle Communications

Why Choose Hongke Antennas

HONGKE TS-GPSD-6-60 Series

ModelColorCellularGPSWIFI
TS-GPSD-6-60ferrous2 x 2 MIMO, 0.3m, SMA (m)1 Module, 0.3m, FME (f)No
TS-GPSD-6-60-DWferrous2 x 2 MIMO, 0.3m, SMA (m)1 Module, 0.3m, FME (f)2 x 2 MIMO, 0.3m, SMA (f)
TS-GPSD-6-60-QWferrous2 x 2 MIMO, 0.3m, SMA (m)1 Module, 0.3m, FME (f)4 x 4 MIMO, 0.3m, SMA (f)
TS-GPSD-6-60-TWferrous2 x 2 MIMO, 0.3m, SMA (m)1 Module, 0.3m, FME (f)3 x 3 MIMO, 0.3m, SMA (f)

Programs/Packages

Interconnected and Enhanced Public Safety Transportation Network Solution

Smart Charging Station Interconnection and Enhancement Solutions

Railway Signal Enhancement and Overlay Solutions

Professional technical support from HONGKEI to help you succeed in your project.

As a provider specializing in machine vision and optoelectronic inspection solutions, Avision is also committed to providing you with a range of paid technical services related to this product, aiming to help you succeed in your project in the most cost-effective way. Please contact us if you need technical services related to this product!

Testing Services

On-demand sample testing and validation of performance evaluation

Hardware Training

Comprehensive coverage of all aspects of hardware product usage

Software Training

Helps you quickly master the skills of using the software

integrated development

Complete integrated solutions based on requirements
