When CANoe is no longer the only option: Discover the new possibilities of PCAN-Explorer 6 from Avision.

In the field of CAN bus analysis software, when CANoe is no longer the only option.HONGKEI PCAN-Explorer 6 A highly competitive alternative.
The importance of CAN bus analysis tools in modern industrial control and automotive electronics applications has long been recognized. As technology evolves and market demands diversify, it is difficult for a single solution to satisfy all users in real-world scenarios.

Against such a backdrop, theHONGKEI PCAN-Explorer 6 With the modular design concept and flexible function expansion mechanism, it brings new choices and possibilities to the field of CAN bus analysis.

In this article, we'll take a closer look at PCAN-Explorer 6 How to provide users with customizable functional options to meet the needs of different industries and projects through an innovative plug-in module strategy. You will see: this is not only a full-featured and easy-to-use CAN/CAN FD analysis tool, but also a new way of thinking - allowing engineers to build the most suitable CAN bus test environment in a more flexible way and maximize cost-effectiveness.

Testimonials

First, let's see what a few real users have to say about the PCAN-Explorer 6.
Learn how it has helped engineers solve complex communications analysis problems more efficiently and economically on real projects.

"I had been using CANoe before, but it was too big for some small projects.
After trying PCAN-Explorer 6, we realized that it meets our needs perfectly, is easy to learn and costs less."
-- an OEM engineer

"In the industrial control world, we needed a tool that could quickly and accurately diagnose CAN bus communication problems.
Not only does Avision PCAN-Explorer 6 do this, but its modular design allows for flexible and practical expansion of functionality."
-- an automation equipment engineer

"We only needed the J1939 diagnostic feature, and PCAN-Explorer 6's J1939 plug-in fit the bill perfectly without having to pay extra for extra features."
-- Training instructor for an engine brand

"The Panel panel feature of PCAN-Explorer 6 is the most convenient I've ever used for completing projects directly in the software.
Utilizes Panel controls to replace host computer development and deliver directly to customers."
-- Product Manager at an Integration Company

Getting to know HONGKEI PCAN-Explorer 6

HONGKEI PCAN-Explorer 6 It is a professional software specially designed for CAN/CAN FD bus analysis, covering real-time monitoring of CAN 2.0 A/B, CAN FD, J1939 and other protocols, message sending and receiving, error frame detection, bus load analysis and other core functions.

It also supports custom scripts, panel controls, and curve diagrams designed to be used directly as a project delivery interface. As a professional CAN analysis platformPCAN-Explorer 6 With powerful communication analysis capabilities and flexible plug-in architecture, it sets a new standard in the CAN/CAN FD field. To enhance efficiency, the software packages all settings into a "Project" mode for centralized management. Key features include:

  • Simulation, Transmission, Recording and Playback
    Receive parsing accuracy of 1 µs, support for ID, DATA, error state analysis and filtering.
  • Signal Editing and Analysis
    Supports loading and editing of database files such as .sym / .dbc / .ARXML, which is indispensable for CAN/CAN FD analysis.
  • Script Automation Test
    Built-in VBScript and standard macros, support for third-party DLL import, can effectively accelerate the test process and development progress.
  • Graphical Controls
    Integration of plotter and meter board functions, can be bound to the signal real-time display of waveforms or meter readings, multi-signal comparison, the trend of changes can be clearly seen.
  • J1939 Communications Support
    Full support of SAE J1939 protocol with all parameter definitions and DTC diagnostic code viewing, especially for heavy-duty vehicles.

Advantages of Modular Plug-ins

HONGKEI PCAN-Explorer 6 A highly modularized architecture allows users to flexibly select plug-ins according to project needs.
This breaks the traditional "software bundling" model and allows investments to be more focused on real-world needs. As your business grows, you can always add new modules to expand your functionality without having to repurchase the main program.

PCAN-Explorer 6 consists of the main software and four major expandable modules:CANdb import, Plotter, Instrument Panel, J1939 communication module.The main software covers general functions such as basic CAN/CAN FD transceiver, simulation, record and playback, scripts, etc. For specific projects that require a .dbc database, graphical interface delivery, or J1939 diagnostic functions, additional plug-in modules can be purchased freely.

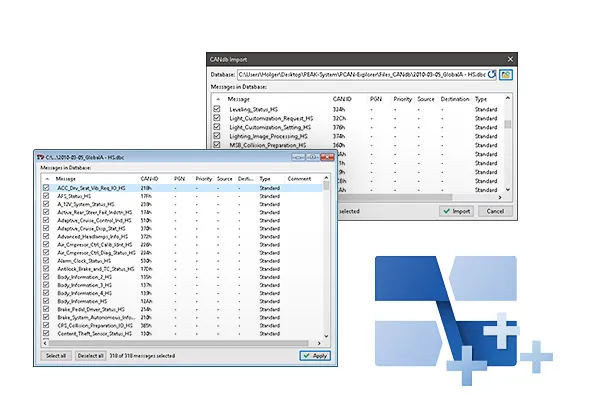

CANdb Import

Supports database loading, signal editing and exporting in .dbc format.

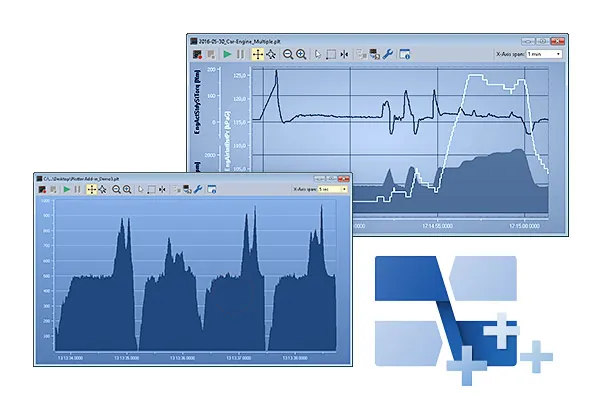

Plotter

Real-time signal curve display, support multi-channel synchronization, data import and export, no limit on the number of channels.

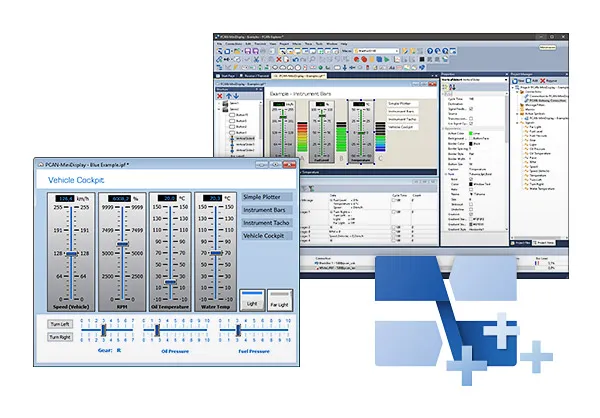

Instrument Panel (Instrument Panel)

Provides a graphical control interface for binding signals and scripts, and supports a variety of controls such as switches, LEDs, and meter displays.

J1939 Communication Module

Supports SAE J1939 Multi-Packet Communication to address 254 ECUs simultaneously and monitor DTC diagnostic information.

Industry Applications

After gaining a deeper understanding of the modularity advantages of PCAN-Explorer 6, the following sections demonstrate its real-world applications in both automotive and industrial fields.



Automotive Industry Cases

A domestic automotive research institute - CAN FD-based real-time energy consumption monitoring platform for vehicles

The platform uses CAN FD communication technology and is built and operated around PCAN-Explorer 6.
It is capable of monitoring key parameters in real-time during the operation of electric vehicles, providing important data support for the research and development and testing of new energy vehicles.

Key Features:

  • Current, voltage and power monitoring: Real-time display of power system operation status.
  • Battery Information: Mileage and power monitoring for range and performance evaluation.
  • Powertrain: Demonstrates vehicle speed, gas/brake pedal opening, motor speed and torque.
  • Data Analysis: Assist in design optimization and troubleshooting through data comparison.

The platform significantly improves the efficiency of data collection in the research and development of new energy vehicles and provides a scientific basis for performance optimization, realizing the development of automotive electronics technology into a new energy vehicle.Intelligent and refinedThe trend of development.

Industrial Cases

An automated equipment factory - Industrial Environment Equipment Temperature Analysis Platform

The plant is based on PCAN-Explorer 6, a temperature monitoring and analysis system.
Record and visualize multiple device temperature data in real time, such as maximum/minimum/average battery pack temperature, evaporator surface temperature, wind speed and motor speed.

Key Features:

  • Multi-dimensional temperature monitoring: synchronized tracking of multiple devices.
  • Real-time updates: Dynamic graphic display of temperature changes for timely alerts.
  • Historical data retrospective: Save historical curves for trend analysis.
  • Abnormal Alarm Mechanism: The alarm will be triggered automatically when the default threshold is exceeded.

The platform effectively improves plant operational efficiency and safety, reduces the risk of equipment overheating, and provides data for subsequent maintenance and upgrades. In Industry 4.0 In this era, enterprises can better realize lean manufacturing and sustainable development through big data and intelligent analysis.

Conclusion

In an environment of continuous technological innovation, there is a greater need for engineering teams to have aEfficient, flexible and cost-effective CAN/CAN FD bus analysis toolTheHONGKEI PCAN-Explorer 6 Ideal for small to medium-sized projects due to its superior performance, modular architecture and ease of use.

It not only meets the needs of professional-grade analysis, but also helps users to improve the development efficiency and test flexibility at a reasonable cost, which becomes the pursuit of the High Performance × Cost Effectiveness of the best programs.

Go to the PCAN-Explorer 6 Product Page
