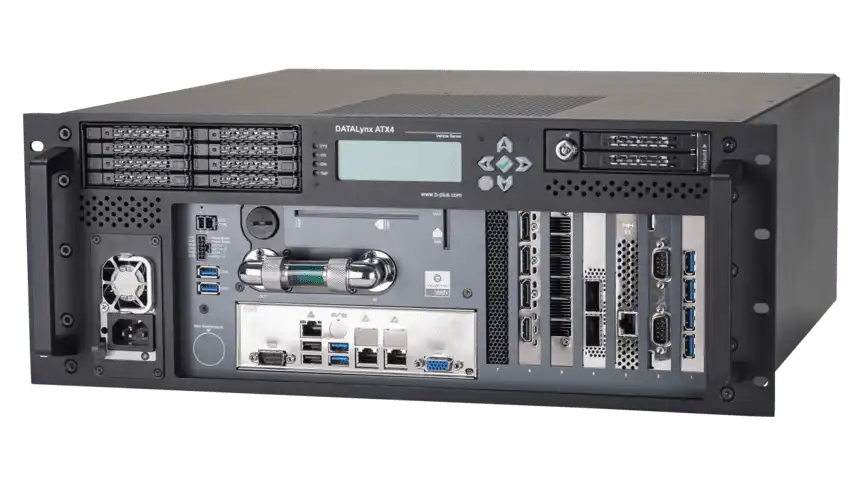

DATALynx ATX4

High-performance in-vehicle servers

The high-performance data processing platform realizes the technical level of the next-generation in-vehicle computing platform, which can effectively meet the needs of complex vehicle data recording and management.

Quote Now

Main Features

  • The DATALynx ATX4 is a high-performance in-vehicle data computing platform that can be used for a wide range of applications including high-performance AI development, raw data acquisition, and image processing.
  • The DATALynx ATX4 features a completely redesigned power supply and powerful fully integrated liquid cooling to maximize CPU and GPU performance.
  • Thanks to the high-quality components and sturdy construction, it can operate safely, efficiently and stably in harsh on-board environments.

Product Highlights

high performance computing power

Expandable up to 5 GPUs, water-cooled cooling meets the demands of high-performance real-time computing, ensures full load operation from -10 to 60°C without degradation, and realizes data acquisition rates of more than 10GB/s.

Open and Scalable

Supports multiple storage solutions, compatible with XTSS time synchronization service, synchronization accuracy up to 100ns; provides rich setup and pilot options in hardware, interface and software framework.

Car Optimization

Able to work properly in harsh vehicle environments, including a wide range of operating temperatures, a powerful heat dissipation system, a stable anti-shock and anti-vibration structure, and a reliable power supply module.

Application Scenarios

Sensor Data Acquisition

HiL Replay

System Expansion Unit

Add-on PCIe

  • Active add-on for up to 4 additional PCle 4.0 slots
  • Optional AC/DC power supply for GPUs
  • b-plus 802.1AS XTSS TSN Extension

Add-on B2S

  • Active add-ons with PCle 3.0 or 4.0 switches
  • 2 PCle x8 slots, 2 BRICK2 memory slots
  • Supports NVMe solutions with speeds up to 96 Gbit/s
    Add-on GPU

Add-on GPU

  • Active add-ons for liquid-cooled graphics cards
  • PCle 5.0, 850w ATX 3.0 power supply
  • Suitable for all GPUs with power consumption of 300w or more.

Technical Specifications

ManagementIPMI with 1x LAN, 1x VGA, 1x Serial" AHCI or RAID1
3.5in BayOperating System Storage Rack: 2x SATA SSD 2.5" AHCI or RAID1
5.25in BayData Storage Rack: 8x 2.5" SATA, 4x U.2 NVMe, 1x 3.5" SATA or Cover
PCIe ExpansionIndustrial NVIDIA GeForce RTX 3000 series, NVIDIA Tesla or NVIDIA Quadro/RTX Multiple PCIe extensions from Intel, Mellanox, HighPoint, StarCooperation, Solectrix , Vector, Peak, StarTech, Delock, ...
(g) PTP / XTSS802.1AS-compliant b-plus Quad-X550 (4x 10GBase-T) Ethernet expansion with GPS, UART, NMEA and PPS input and output systems or optional XTSS plug-in
Add-on PSUOptional 6 - 32V DC, 9 - 32V, 500W per Extended PCIe
GPIOConfigurable Ignition/Terminal CMOS Overlay, 2x GPI Trigger Inputs (with Pwr/Rst Button Function)
2x 5V/2A outputs, 2x 12V/1A outputs
HMI20 x 4 character LCD für system control and display

Operating SystemPre-installed with Ubuntu 18.04, Ubuntu 20.04 or windows 10 IoT Enterprise SAC.
SIODIb-plus API and OS tools for component monitoring and I/O control, including environment sensors based on system logging and diagnostics

Base Size4U, 19 inches, 442mm(W) x 475mm(D) x 176mm(H), NW 23kg
Dimensions (with additional components)1.5U, 19 inches, 442mm(W) x 475mm(D) x 66mm(H), NW 6.5kg
VibrationComplies with LV124 specification with an amplitude of 6.5 m/s² at full system load.
CertificatesCE - EN 55032 (Class A) / EN 55035, RoHS, REACH

Power supplyDC power supply, optional 6-32 V
Running Power1250W, each Add-on 500W (with power supply)/250W (without power supply)
maximum power4750W

Working Temperature-10°C ~ +60°C
Storage Temperature-35°C ~ +85°C
HumidityMaximum 90% non-condensing
IP ProtectionIP 20
CoolingWater Cooling

Ordering Information

brand nameModelDescription
DATALynx ATX4 Generation EP3km-b16047-dly-ep3-xxxxProcessor: AMD EPYC™ 7002 or 7003
Motherboard: Supermicro H12SSL-i
8×8-64GB DDR4-3200, 6x USB 3.0, 2x 1000Base-T
