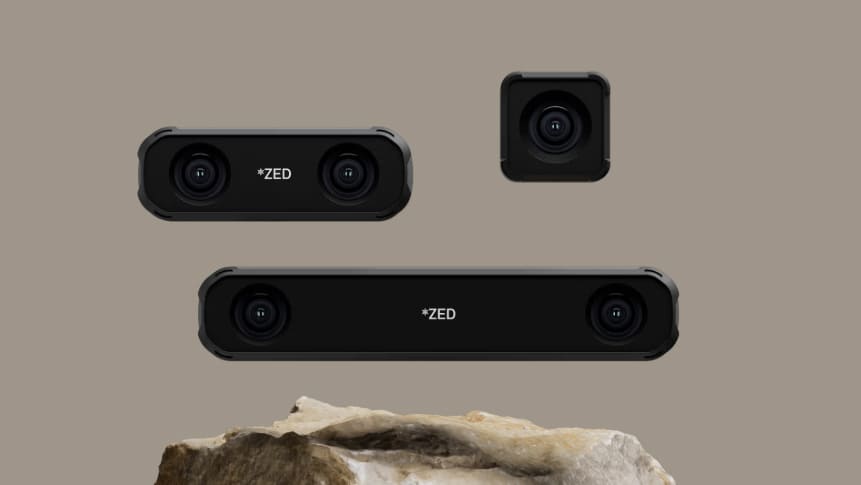

Stereolabs ZED Series Spatial Awareness Cameras
Capture dynamic details using advanced perception cameras to obtain rich color and depth data
- ZED X ONE: An industrial-grade monocular perception camera that combines high resolution, low latency, and all-weather reliability
- ZED X Series: IP67-Rated GMSL2 Global Shutter Stereo Camera
- ZED 2i / ZED Mini: IP66-rated roller shutter / Compact USB 3.0 stereo camera
- ZED BOX: A Compact Vision AI Edge Computer Equipped with the NVIDIA® Jetson Orin™ Module
- ZED SDK: An integrated computer vision platform that provides rich depth information for ZED cameras, enabling applications to leverage depth, motion sensing, and spatial AI capabilities

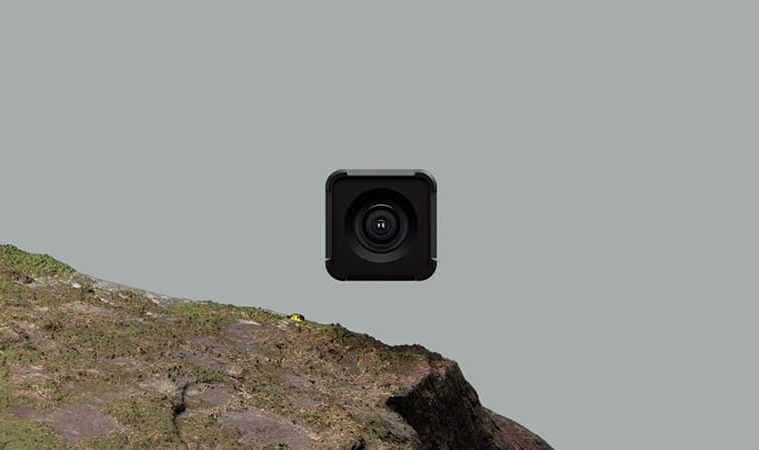

ZED X One
- Equipped with a global shutter and a GMSL2 interface, it offers a wide selection of S-mount lenses. It is suitable for applications requiring high-resolution perception, such as factory automation, logistics, and humanoid robot platforms.
- When paired with the same model of camera, it can be used to build a customized stereo system, enabling flexible depth perception.
- Provides distortion-free 3D imaging of fast-moving objects. Powered by advanced localization and perception technologies driven by the ZED SDK, it is designed specifically for robots that require reliable depth perception and semantic understanding.

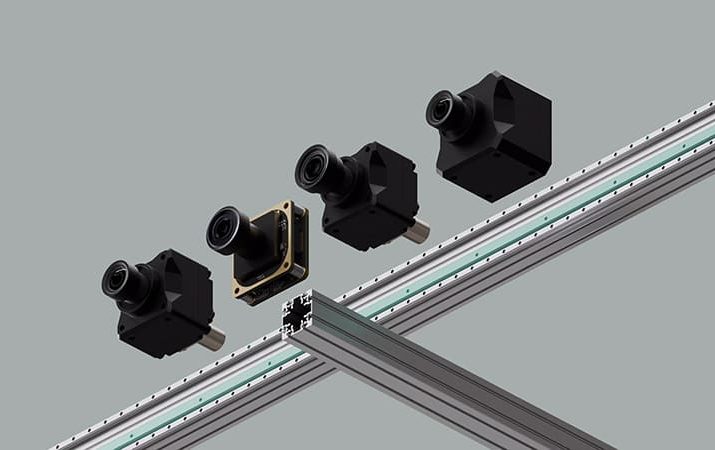

ZED X One S Compact Edition
- The ZED X One GS offers a 35% reduction in the volume-to-weight ratio while maintaining the same performance and reliability
- Equipped with a new fisheye lens for panoramic awareness, it offers an IP69K wide-angle option designed for harsh environments, as well as a narrow-field-of-view configuration optimized for long-range or target-detection tasks
- Offering powerful visual capabilities in an ultra-compact design, it is suitable for robots with limited space, ranging from sorting robots to next-generation humanoid robots.

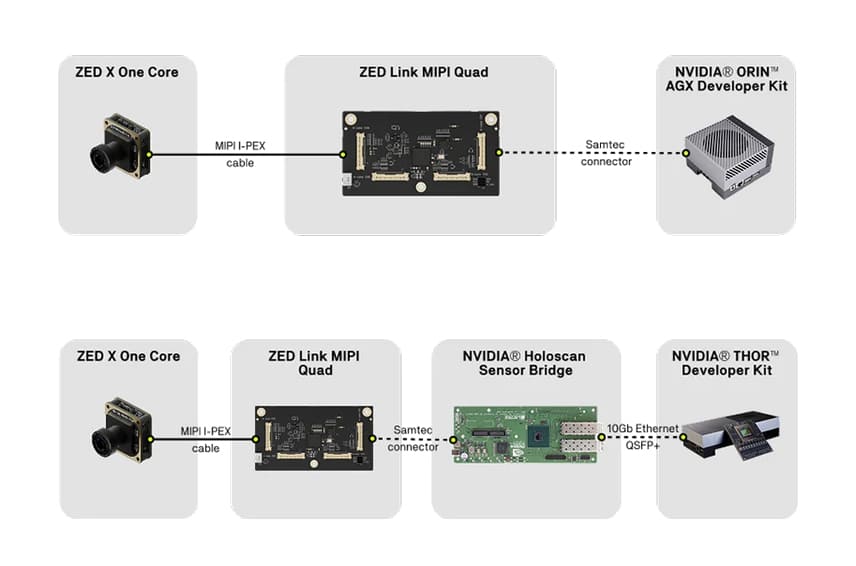

ZED X One Core Compact Native Industrial-Grade MIPI I-PEX Interface
- A lightweight, compact monocular camera designed specifically for OEM equipment that requires powerful vision capabilities and demands an extremely compact form factor. Its ultra-thin design allows it to integrate seamlessly into lightweight enclosures and highly integrated robotic systems, making it ideal for next-generation automation platforms.
- Equipped with native industrial-grade MIPI I-PEX connectors to deliver low-latency performance, the design supports coaxial cables up to 50 centimeters in length, offering significantly greater cabling flexibility than standard MIPI interfaces.
- The configuration supports low-latency multi-camera capture, with a single capture module supporting up to four cameras. This modular solution facilitates the efficient deployment of advanced edge AI workflows while providing excellent scalability for complex perception tasks.
- Designed specifically for the ZED Link MIPI capture card. The ecosystem is directly compatible with the NVIDIA Jetson AGX Orin Developer Kit, the NVIDIA Jetson AGX Thor Developer Kit, and the NVIDIA Holoscan Sensor Bridge.

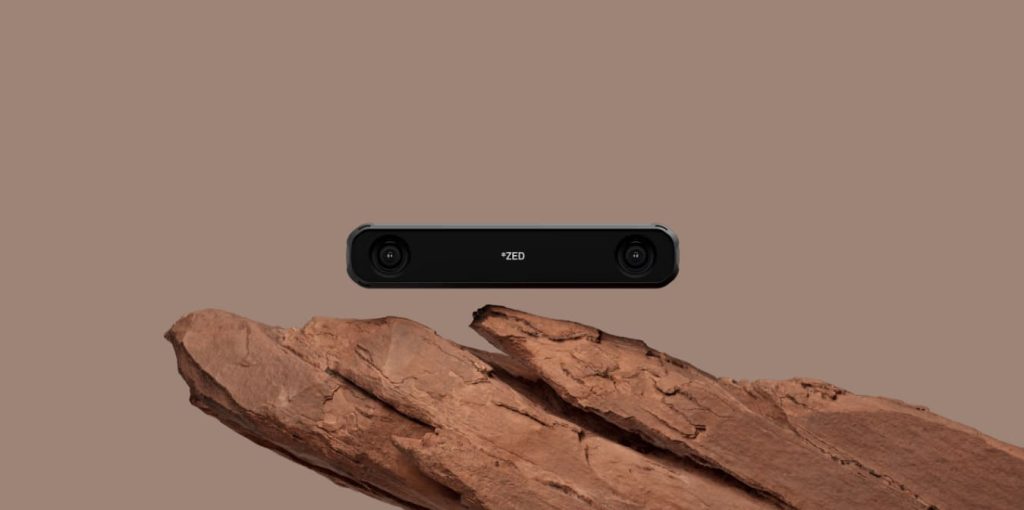

ZED X
- Equipped with a global shutter, it captures clear, motion-blur-free images even in dynamic environments.
- Powered by ZED SDK technology, it features advanced collision avoidance, real-time 3D perception, precise localization, and semantic scene understanding, making it ideal for demanding automation tasks.
- 120 mm stereo baseline, global shutter, 2x (1920x1200) at 60 fps, high-performance IMU, GMSL2 interface synchronization
ZED X Mini
- Compact in design and precise in measurement, it combines ultra-deep perception, visual-inertial motion tracking, and ease of integration, making it suitable for advanced 3D mapping and perception tasks.
- The ZED X Mini is suitable for operational tasks in agriculture, logistics, and construction, and is particularly well-suited for short-distance applications such as automation and sorting.
- 50 mm stereo baseline, global shutter, 2x (1920x1200) at 60 fps, high-performance IMU, GMSL2 interface synchronization
ZED X Nano
- An advanced wrist-mounted 3D camera featuring an ultra-compact, lightweight design, specifically engineered for robotic operations, humanoid robots, and physical AI.
- Equipped with a 2.3-megapixel high-resolution global shutter sensor, zero-copy capture, a neural depth engine, and a ruggedized GMSL2 design. With sub-millimeter spatial intelligence, it effectively performs operations such as grasping, placing, and detection.
- 18-millimeter 3D baseline, global shutter, 2x 1920x1200 @ 60 fps, high-performance IMU, GMSL2 interface synchronization
ZED 2i
- Combining wide-angle depth sensing with AI-driven spatial awareness, suitable for indoor and outdoor applications
- Modular design, featuring interchangeable lenses and an optional IP66-rated enclosure
- Dual high-resolution RGB sensors with a wide-angle field of view of up to 120°. Built-in IMU, barometer, magnetometer, and temperature sensor enhance environmental awareness.
- 120 mm stereo baseline, USB 3.1, 1080p @ 30 fps

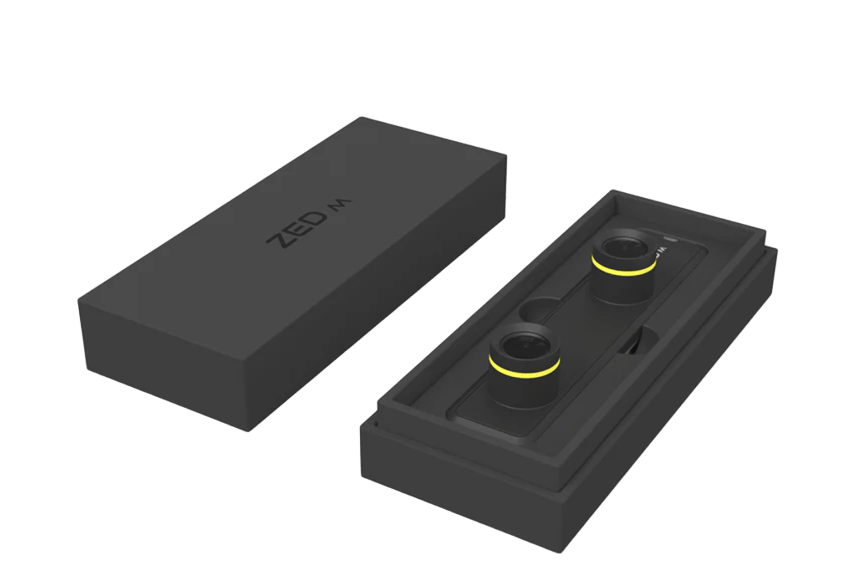

ZED Mini
- Offers ultra-high-precision sensing and motion tracking capabilities in a compact design. Ideal for augmented reality, 3D mapping, and robotics applications.
- Built-in 6-degree-of-freedom (6DoF) IMU for precise motion tracking. Features high-definition depth sensing and a new ultra-high mode.
- Compact design with a 63-millimeter stereo baseline. USB 3.1, 1080p @ 30 fps
ZED Box
- A high-performance embedded computing unit that supports up to 4 channels of GMSL2 or 3 channels of USB 3.1 camera inputs. It features Power over Ethernet (PoE+) and can be equipped with an optional GNSS RTK module for high-precision positioning.
- 4-channel GMSL2 camera inputs, 3-channel USB 3.1 camera inputs
- Wi-Fi 6E, Bluetooth (optional)
- GNSS RTK Module (Optional)

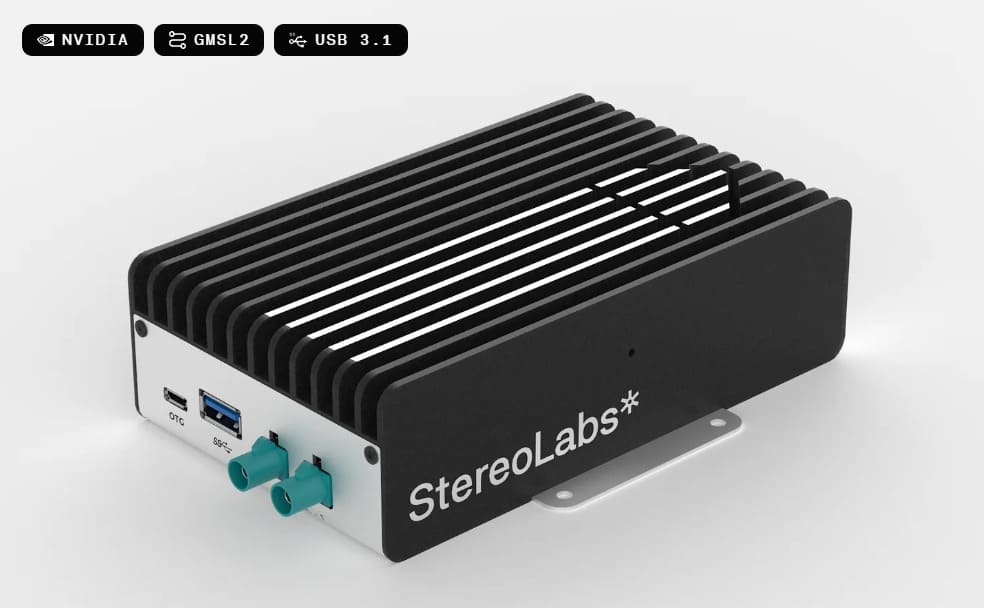

ZED Box Mini
- A brand-new, highly efficient design that delivers the same performance in a more compact and cost-effective form factor. Supports up to 2 GMSL2 camera channels, making it ideal for large-scale deployments. Dimensions: 152.8 × 103.8 × 41.5 mm (L × W × H) / 6.02 × 4.09 × 1.63 inches
- 2-channel GMSL2 camera input, 1-channel USB 3.1 camera input
- Power Supply: 12V DC
- Supports trigger input/output for multi-board synchronization

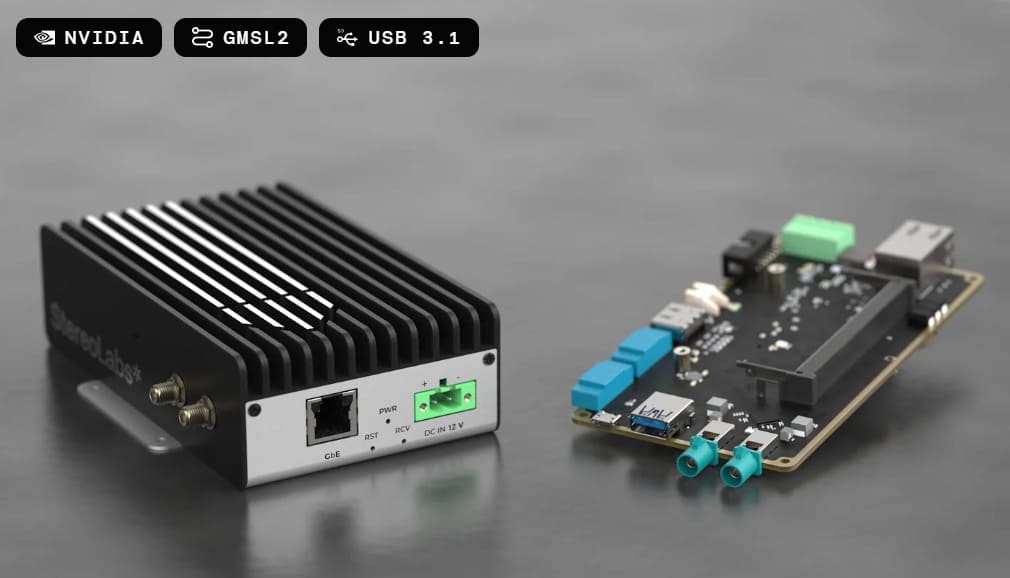

ZED Box Mini Carrier Board
- The ZED Box Mini core board without a housing. Designed specifically for robots, machines, and embedded systems, it integrates seamlessly and is particularly suitable for applications with strict space and cost constraints. Dimensions: 152.8 × 77.5 × 23.7 mm (L × W × H) / 6.02 × 3.05 × 0.93 inches
- 2-channel GMSL2 camera input, 1-channel USB 3.1 camera input
- Power Supply: 12V DC
- Supports trigger input/output for multi-board synchronization
Single-Channel Stereo USB Kit
- This kit provides a complete starter set of components needed for digital twins and spatial analysis. From motion capture and people counting to industrial volumetry, this kit can be installed anywhere in a physical space to begin streaming spatial and motion data for objects and people. By connecting multiple kits via multi-camera fusion and managing them through the ZED Hub, you can cover even larger areas.
- 1× ZED 2i Stereo Camera
- 1× ZED Box Mini
- 1× 1.5-meter USB 3.0 Type-C Cable with Dual Screw Locks

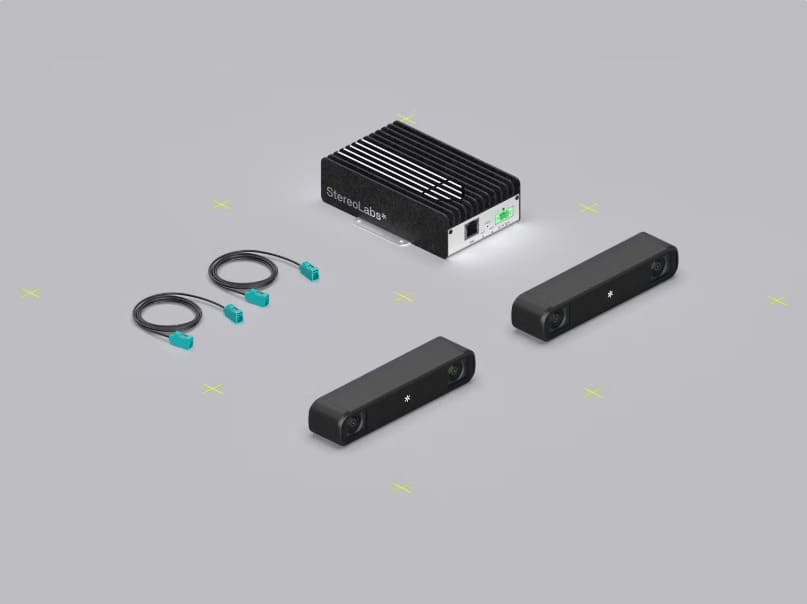

Dual-Channel Autonomous Kit
- Powered by the ZED Box Orin NX 16GB with built-in GMSL2 capture capabilities, this kit integrates stereoscopic depth perception with expanded monocular camera coverage to simultaneously capture multi-view datasets in complex real-world environments. It is suitable for training Visual-Language-Action (VLA) models capable of real-world 3D understanding and rapid “perception-to-action” loops.
- 2× ZED X Stereo Camera
- 1× ZED Box Mini
- 2 × 1.5-meter GMSL2 Fakra Extension Cable (Female to Female)

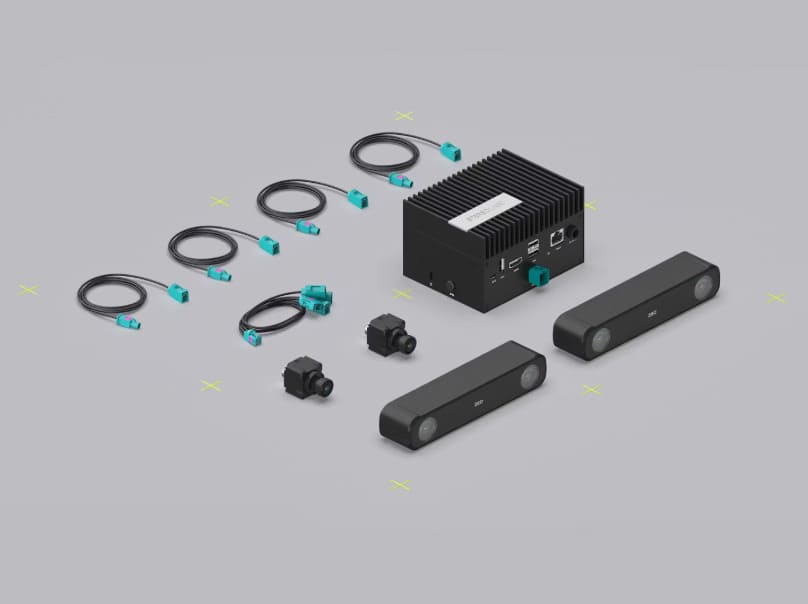

Hybrid Autonomous Suite
- The Hybrid Autonomy Kit is an integrated solution that provides omnidirectional perception and visual analysis capabilities for all types of robots, making it particularly suitable for robots designed for both indoor and outdoor use. The system integrates a ZED Box Orin NX 16GB, two ZED X stereo cameras, two ZED X One GS monocular cameras, and extension cables.
- 2× ZED X Stereo Camera
- 1× ZED Box Orin NX 16GB
- 2× ZED X One Monocular Camera
- 1× 4-in-1 GMSL2 Cable
- 4 × 1.5-meter GMSL2 Fakra Extension Cable (Male to Female)
Core Strengths
ZED X One GMSL Monocular Camera
Supports global/rolling shutter, GMSL2/MIPI, and a variety of field-of-view lenses. Combined with sub-millisecond hardware synchronization and low-level image control, it flexibly adapts to a wide range of vision architectures, from loaders to humanoid robots.
ZED X GMSL Stereo Camera
Equipped with a global shutter and Terra AI deep learning technology, it supports multi-camera hardware synchronization and long-range GMSL2 transmission, and features an IP67 protection rating, providing robots with highly robust, low-latency 3D spatial perception.
ZED 2i USB 3.0 Stereo Camera
Featuring IP66 protection, 120° ultra-wide-angle depth sensing, an integrated IMU/barometer/magnetometer, and support for interchangeable lenses, it enables stable and reliable 3D spatial perception in challenging environments such as healthcare, agriculture, and industry.
Open and Scalable AI Deep Vision Capabilities
The ZED SDK integrates advanced AI-powered deep vision capabilities and offers a high degree of openness and scalability. It has served more than 100,000 users worldwide, helping industry clients build secure, intelligent, and round-the-clock 3D perception and decision-making systems.
Core Performance Metrics: Throughput, Latency, and Resilience
Deeply optimized around the three key metrics of throughput, latency, and robustness, the underlying visual stack is specifically designed for robotics applications, utilizing a high-efficiency, low-memory architecture to ensure that embedded platforms can reliably process high-frequency, large-scale sensor data.
Support from a mature and robust ecosystem of hardware and software
Stereolabs offers an industry-proven ecosystem of hardware and software that supports flexible configuration and rapid integration, helping developers and enterprises accelerate project deployment and time-to-market.
Application Scenarios
Related Terms
Embodied Intelligent Vision
Spatial Perception System
USB 3.0 Stereo Camera
GMSL Stereo Camera
USB 3.0 Depth Camera
GMSL Depth Camera
GMSL Monocular Camera
Humanoid Robot Vision
Robotic Stereo Camera
Depth Imaging Technology
Robotic Spatial Perception
Autonomous Robot Vision Camera
Robot Depth Camera
Robotic Stereo Vision Hardware
Robotic Vision Development Kit
Bimodal Camera for Humanoid Robots
Visual Perception in Autonomous Vehicles
AGV Autonomous Navigation Camera
AMR Obstacle-Avoidance Depth Camera

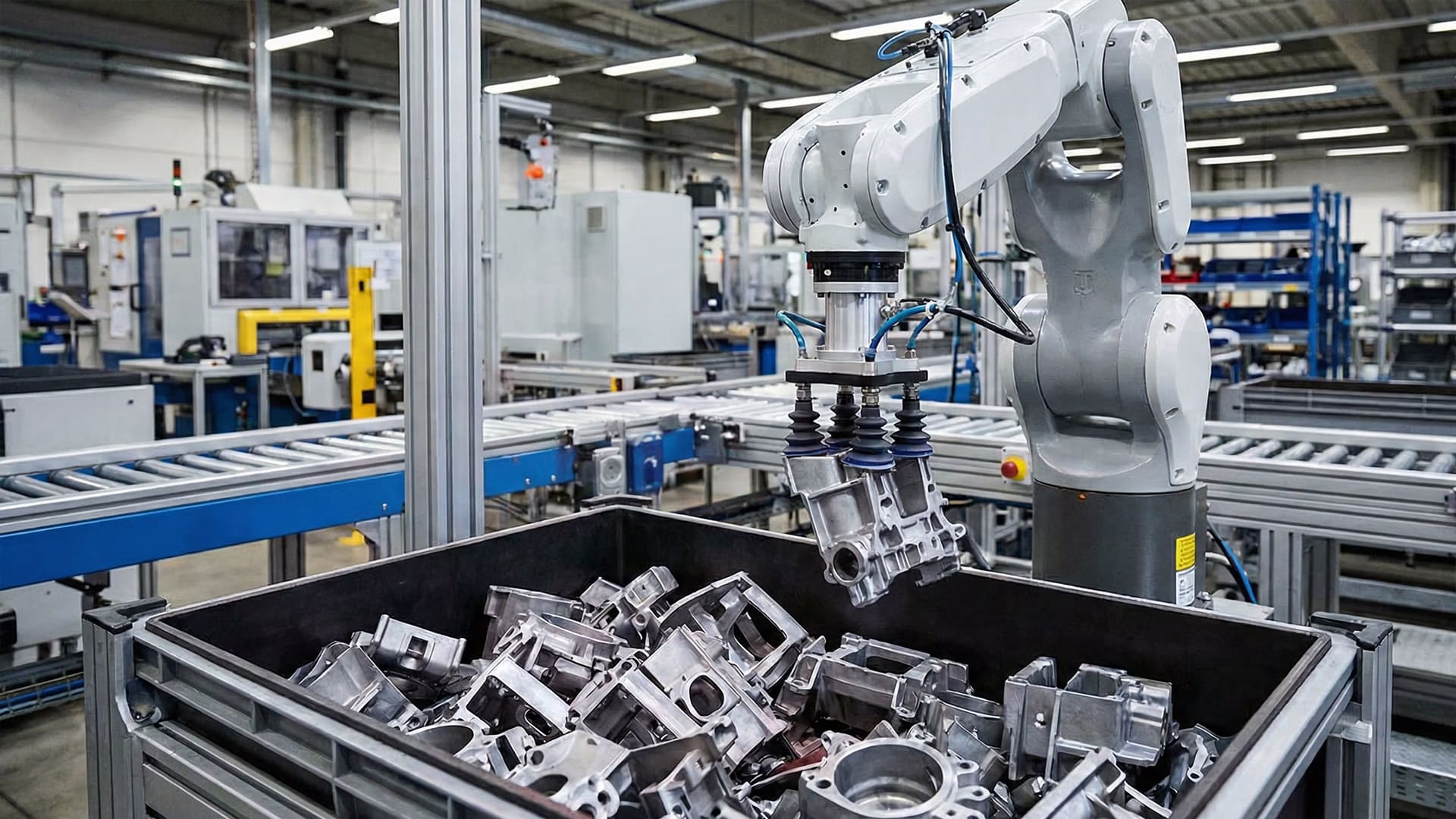

Item Sorting
3D Vision-Guided Robots Accurately Identify and Sort Different Objects

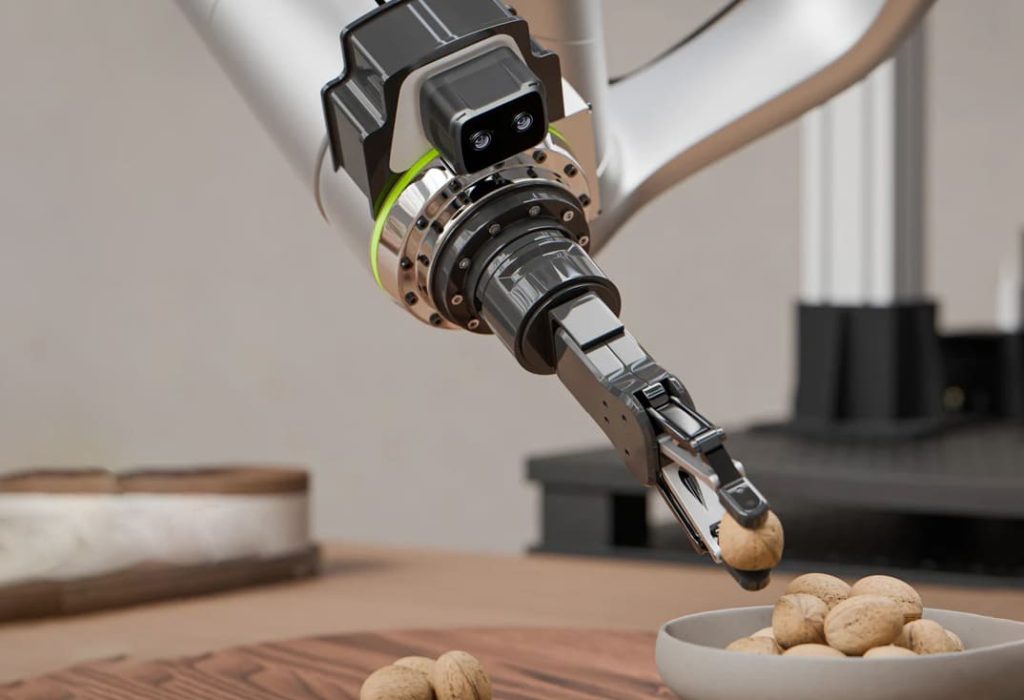

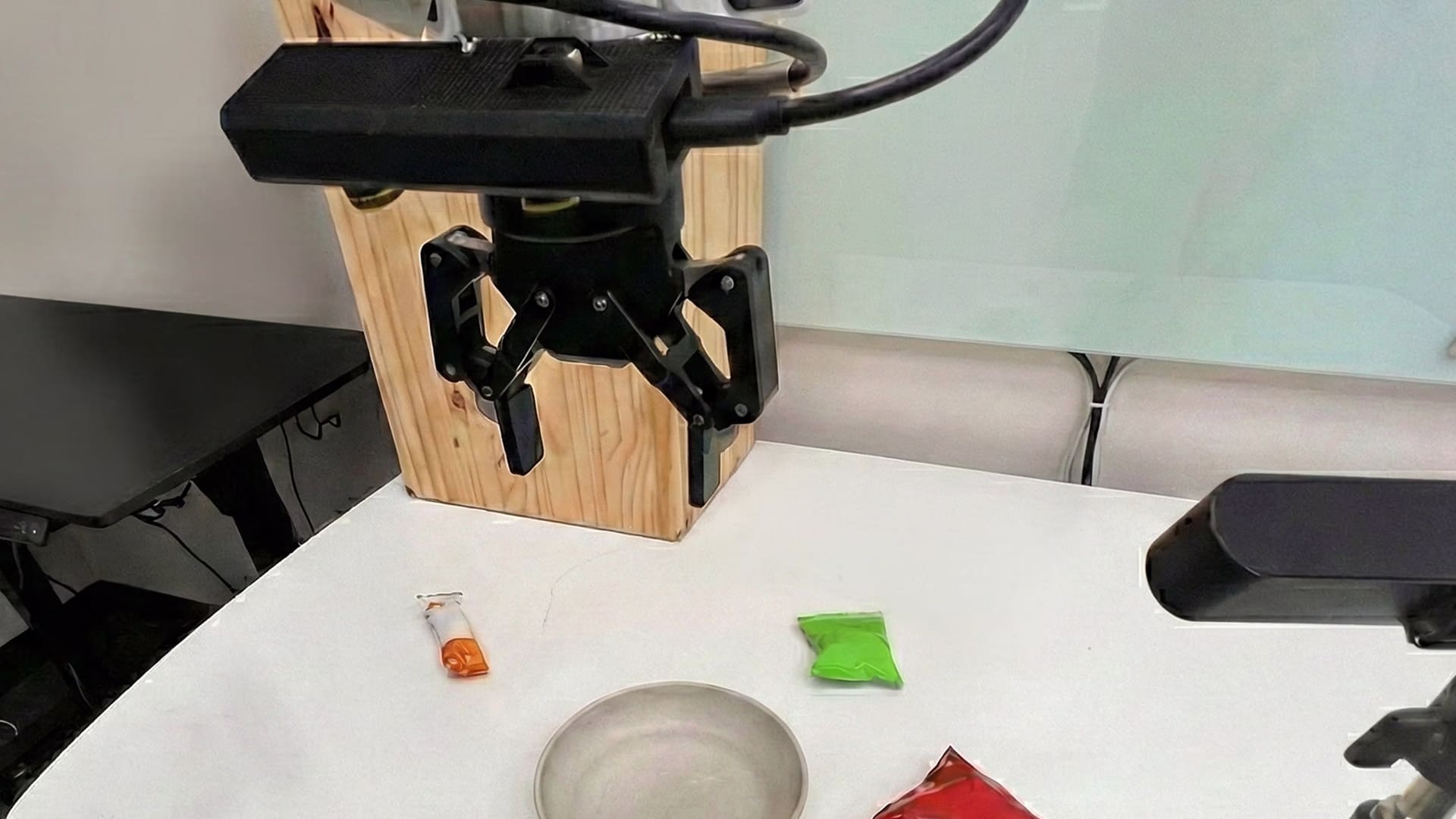

Robotic Arm Control
Provides millimeter-level spatial positioning, enabling flexible control for complex tasks
Navigation Planning
Planning Optimal Paths for Mobile Robots Based on Real-Time 3D Maps

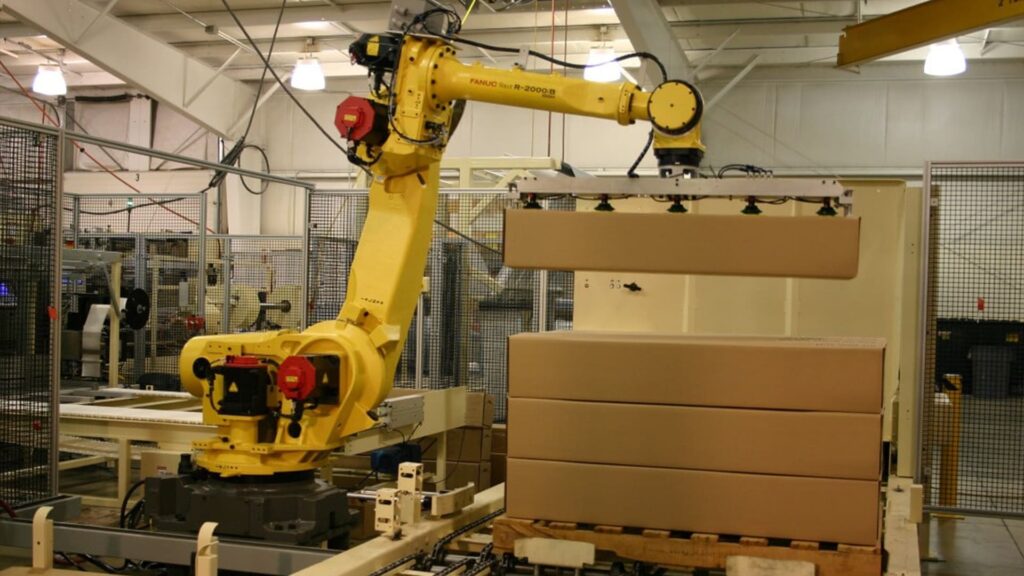

Pallet Stacking
Real-time scanning and positioning enable efficient and stable automated stacking
Data Collection
Continuously collect 3D information from scenes to build a high-precision 3D environmental dataset
Regional Monitoring
Real-time 3D monitoring and anomaly detection for specific areas

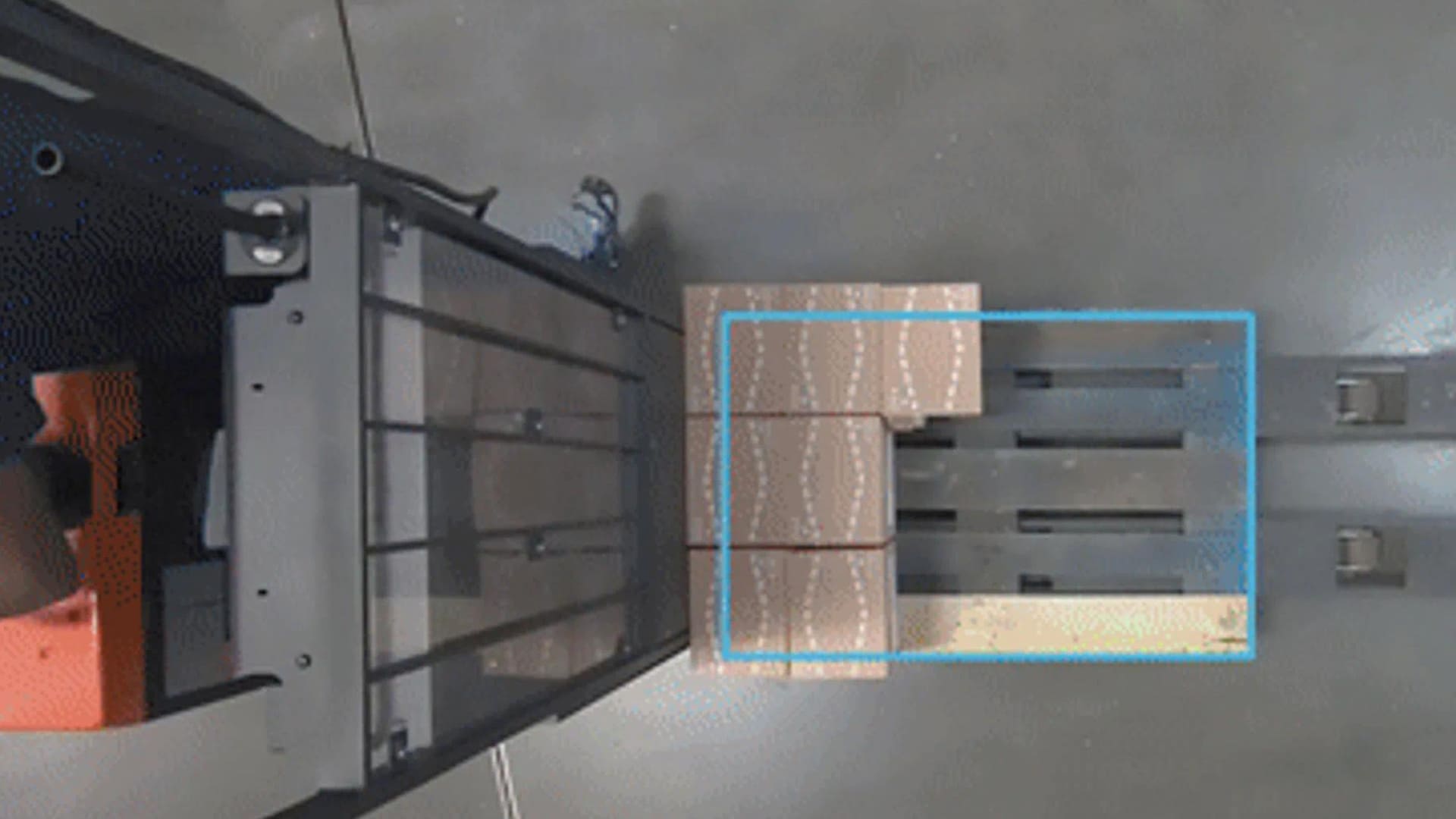

Package Count
Automatically identify and count the number and volume of packages on the conveyor belt

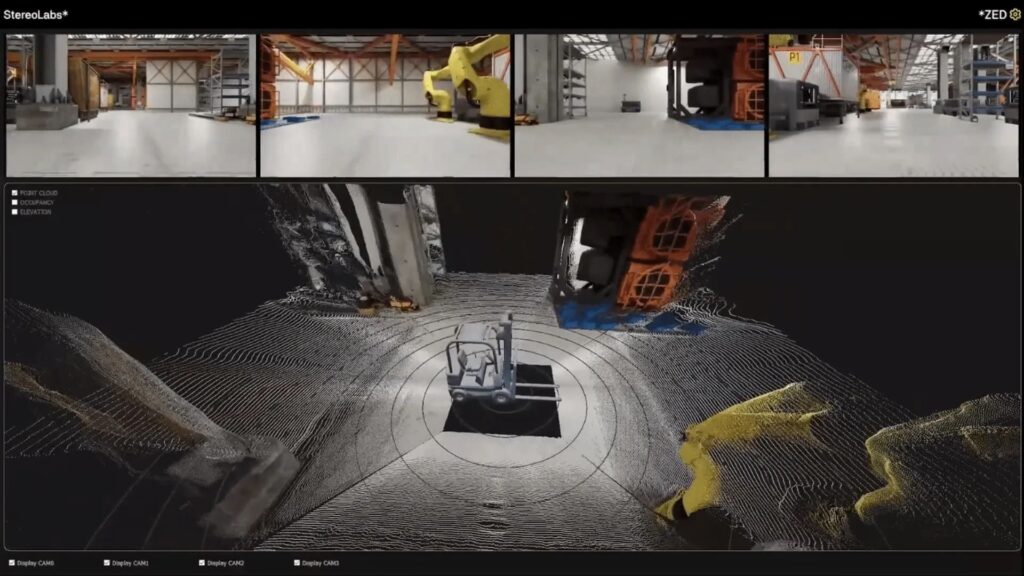

Spatial Obstacle Avoidance
Detect moving obstacles in the environment to ensure safe navigation
Client Cases
Serving Businesses
0
+
Researchers
0
+
Scientific Research
0
+
Customer Needs

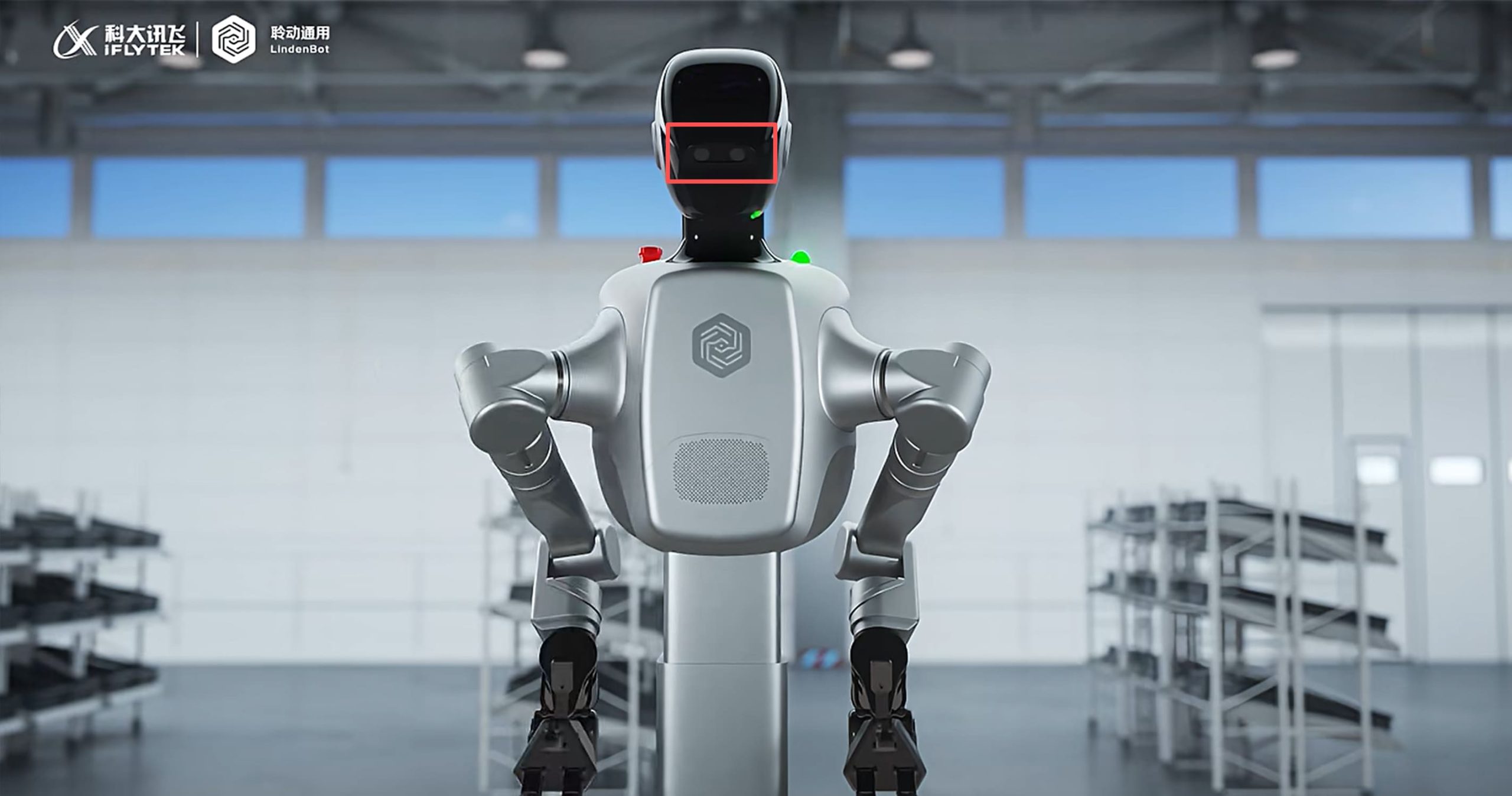

Hongke’s partner is developing industrial-grade embodied intelligent robots designed specifically for complex industrial environments such as the automotive, 3C electronics, and warehousing sectors, which place extremely high demands on the core sensing component—the depth camera. The robots must use stereo or 3D depth cameras to capture real-time 3D environmental data and accurately identify complex components and irregularly shaped objects to meet the demands of high-precision grasping, path planning, and palletizing tasks. Therefore, the depth cameras must have an industrial protection rating of IP67 or higher, to withstand dust, vibration, oil contamination, and wide temperature ranges, ensuring stable, high-frame-rate depth data output even within the robot’s complex electromagnetic environment. This provides reliable 3D environmental perception input for the robot’s embodied intelligence model, enabling autonomous operation and safe interaction. In addition, the camera must provide a comprehensive set of APIs and ROS-compatible sample programs to simplify integration into existing development environments for embodied intelligence robots, thereby facilitating rapid project implementation and robot deployment.
Hi-Tech Solutions
Equipped with Hongke’s ZED X series depth cameras, it offers 30 fps, 1920×1200 global shutter resolution, and depth accuracy of ±0.8% or 0.4% within 2 meters, providing real-time, high-precision 3D data for embodied intelligent robots to meet customers’ 3D perception needs. The ZED X Series depth cameras feature an IP67 protection rating and utilize the GMSL2 protocol, ensuring that robots can consistently output high-frame-rate depth data even in dusty, vibrating, oily, wide-temperature, and complex electromagnetic environments. Leveraging decades of technical expertise, Hongke’s ZED depth cameras offer a comprehensive software development ecosystem, including C++, Python, and ROS sample programs, and are compatible with existing robot development and simulation platform tools such as NVIDIA IsaacSim, Unity 3D, and Foxglove.
Hongke Collaborates with ZED Camera on Customer Engagement
Hongke has signed a strategic cooperation agreement with the core team behind embodied robots at Anhui Lingdong General Robotics (a subsidiary of iFlytek), and ZED X will be integrated into their embodied intelligent robots.
More ZED Camera Clients
“Stereolabs enables us to develop the world’s best products, both in terms of functionality and on a broader scale.” — Carlo Mondavi, Co-Founder and Chief Agricultural Officer
In developing autonomous electric tractors, Monarch Tractor faced harsh conditions in agricultural environments—such as dust, fluctuating light, and vibrations—that made it difficult for traditional vision systems to ensure safety and reliability. Therefore, the company adopted Stereolabs’ ZED 2i stereo cameras and accompanying AI technology to enable functions such as human-eye-like depth perception, VSLAM localization, object detection, and human tracking. Each tractor is equipped with two ZED 2i cameras, successfully replacing high-cost LiDAR while significantly reducing costs and increasing pixel density.
By combining GPS with RTK correction, the entire system achieves an operational accuracy of 2 centimeters, significantly enhancing the tractor’s ability to avoid obstacles in complex farmland, operator safety, and overall operational efficiency. The ZED camera’s adaptability to dust, variable lighting conditions, and adverse weather makes it an ideal sensor for autonomous agricultural equipment.
Ultimately, Monarch Tractor not only enhances safety and productivity in agricultural production but also helps farmers gain strategic insights through the environmental data it collects, driving agriculture toward a smarter and more sustainable future. This case study fully demonstrates the application potential of AI solutions based on stereoscopic vision in heavy industry and outdoor autonomous equipment.
Autonomous Robots
To navigate complex and unpredictable terrain, autonomous mobile robots must continuously observe and understand their environment from all angles. At the same time, to effectively grasp or manipulate objects, robotic arms must continuously perceive the intricate details of their surroundings.
In both cases, the accuracy of vision-based systems is crucial, as it helps autonomous robots transition from basic tasks to more complex ones.
For example: self-driving tractors, AMRs, robotic arms, delivery robots, multi-purpose vehicles, fruit-picking robots, sprayers, etc.
Digital Twin
Spatial analysis and motion tracking involve detailed analysis of large spaces to gain precise and actionable insights.
By leveraging the ZED camera’s advanced visual data capture capabilities and the ZED SDK’s perception layer, we provide precise and actionable insights to optimize the interpretation and application of spatial data.
For example: motion tracking, automation, on-site safety, traffic optimization, retail efficiency, immersive experiences, digital twins, and more.
“Stereolabs is a key partner in the development of our body tracking system. They provided comprehensive guidance and hands-on support for integrating multiple cameras and ensuring data synchronization. We thank them for helping us seamlessly operate and deploy the entire system!” — MARIUS JABLONSKIS, Head of Digital Transformation at NORCONSULT

Automated Tractors
Monarch uses ZED X as its off-road autonomous navigation system

Off-Road Vehicles
Enabling robots to understand unstructured terrain

Multipurpose Vehicle
Integrating 3D Vision for Multi-Task Capabilities on a Robotic Platform

Underwater Exploration
Integrating Intelligent Vision for Underwater Exploration or Biomass Estimation

Fitness Equipment
Revolutionizing Ball Sports with an AI-Driven Training Experience

Lawn Mower
Achieving automated lawn mowing through vision-driven precision
Powered by advanced vision software
ZED combines advanced depth sensing with AI, allowing you to quickly and easily build cutting-edge spatial intelligence and digital twin applications.
ZED: This industry-leading camera observes the world with dynamic detail, much like human vision. It captures rich depth and color data, taking spatial awareness to a whole new level.
Our integrated visual platform brings depth details to the ZED camera, adding depth, motion awareness, and spatial AI to any application.
Technical Resources
Stereolabs — Giving Robots Vision Like the Human Eye
Since its founding in 2010, Stereolabs has been dedicated to endowing robots with human-like visual capabilities. Through advanced stereo vision and depth-sensing technologies, the company enables robots not only to “see” a high-resolution, full-color world, but also to deeply understand the textures, spatial relationships, and semantic information within their environment. The company’s technology originated at the Paris Institute of Optics. In its early days, it established its industry reputation by providing 3D image stabilization for films such as *Avatar*; subsequently, its independently developed ZED series of depth cameras became an industry benchmark due to their ruggedness and cost-effectiveness. Today, Stereolabs is propelling vision technology into a new era—advanced perception systems that fuse data from multiple sources to provide uninterrupted, high-precision environmental understanding solutions for fields such as autonomous robotics and embodied intelligence. With offices in San Francisco, New York, and Paris, the company serves partners across the globe.
As the official authorized distributor of Stereolabs software and hardware products (including the ZED camera, ZED Mini camera, and ZED SDK) in China, Hongke has maintained long-term, stable technical exchanges and project training with Stereolabs, and is committed to introducing cutting-edge stereo vision solutions to the domestic market. From agricultural automation to urban spatial analysis, YouSiTe has successfully served numerous industry-leading clients, including iFlytek, Qiongche Intelligence, Xiaoyu Intelligent Manufacturing, Lingdong General, Zhongke Optoelectronics, Haiwei Technology, and Daxiao Robotics, accelerating the adoption of ZED products in real-world scenarios such as embodied intelligence.
Ms. Chen Qiuyuan, CEO of Hongke, paid a visit to the French company Stereolabs in Paris
Stereolabs ensures compatibility with a wide range of hardware and software options. This flexibility allows you to seamlessly integrate our technology into your existing equipment and use your preferred tools and workflows.
More Products

ZED X One
Multifunctional Monocular Perception Camera
Achieves an excellent balance between high resolution, low latency, and round-the-clock reliability

ZED X
GMSL2 Stereo Perception Camera
The ZED X focuses on obstacle detection and navigation, while the ZED X Mini focuses on close-range applications such as object retrieval.

ZED 2
IP66-Rated Roller Shutter Stereo Camera
Designed specifically for spatial analysis and immersive experiences, powered by Neural Depth Engine 2

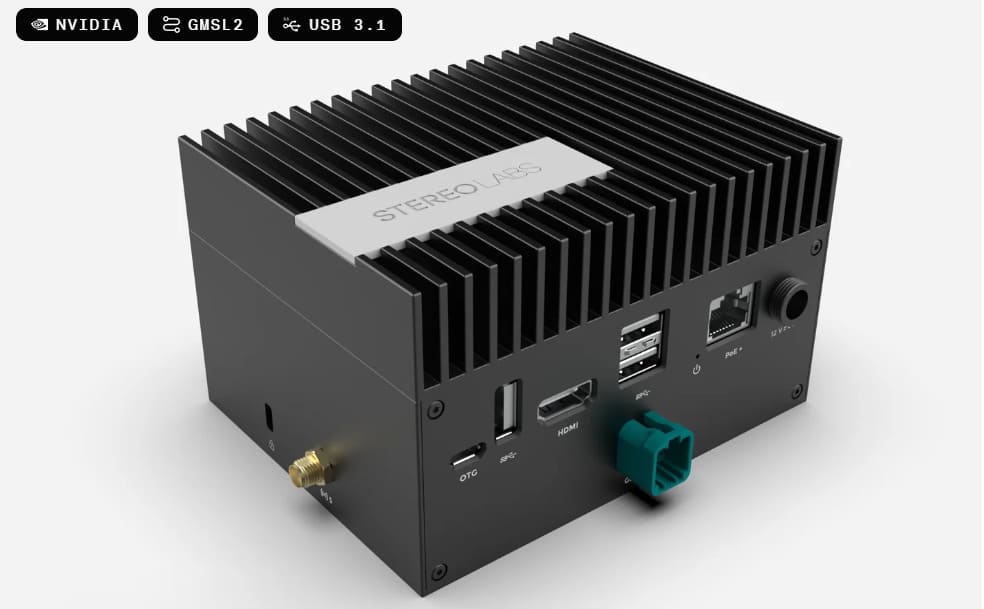

ZED Box
A Compact and Powerful Embedded Edge Computing Box
Edge 3D Perception and AI Computing Powered by NVIDIA Jetson Orin
Professional technical support from HONGKEI to help you succeed in your project.
Drawing on its many years of technical expertise in automotive electronics, industrial automation, data security, and life sciences, Hongke provides customers with end-to-end solutions ranging from critical components and precision instruments to system-level platforms.
We don’t just provide products; we’re committed to helping our customers achieve long-term success through professional technical consulting and innovative optimization.
